1:4 LVCMOS fan-out clock buffer, surface mount, 8-TSSOP package with gold contact plating. Operates from 2.3V to 3.6V supply, delivering up to 250MHz frequency with low jitter. Features a propagation delay of 2ns and a turn-on delay time of 10ns. Suitable for applications within a -40°C to 85°C temperature range. RoHS compliant and packaged in tape and reel.
Frequency250MHz
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CDCLVC1104PWR technical specifications.
General
Package/Case
TSSOP
Contact Plating
Gold
Frequency
250MHz
Input
LVCMOS
Lead Free
Lead Free
Max Frequency
250MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of Circuits
1
Number of Outputs
4
Package Quantity
2000
Packaging
Tape and Reel
Propagation Delay
2ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Turn-On Delay Time
10ns
Weight
0.005573oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CDCLVC1104PWR Datasheet
Download the complete datasheet for Texas Instruments CDCLVC1104PWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

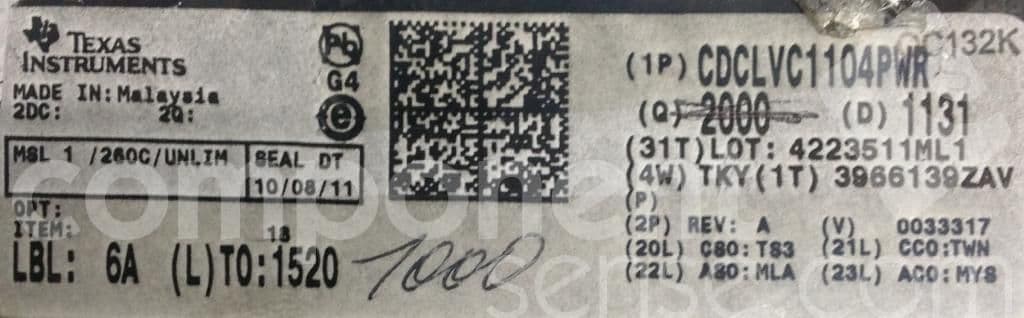

Product Images
