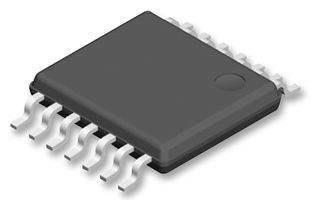

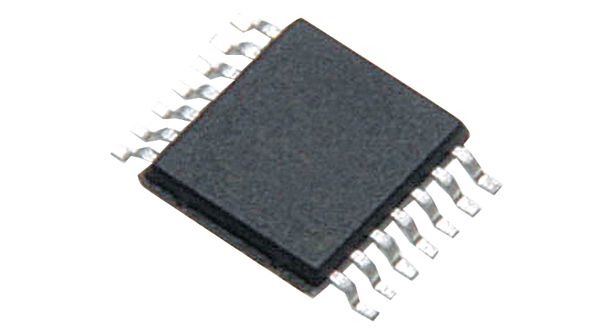

6-output, 1-input clock fanout buffer supporting up to 250MHz operation. Features LVCMOS input and 1:6 fanout capability. Operates from a 2.3V to 3.6V supply with a maximum supply current of 10mA. Packaged in a 14-pin TSSOP with gold contact plating, suitable for surface mounting. Offers a propagation delay of 2ns and a turn-on delay time of 10ns. RoHS compliant and lead-free.
Frequency250MHz
PackageTSSOP
Current10mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CDCLVC1106PW technical specifications.
General
Package/Case
TSSOP
Contact Plating
Gold
Frequency
250MHz
Height
1.05mm
Input
LVCMOS
Lead Free
Lead Free
Length
5.1mm
Max Frequency
250MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
10mA
Max Supply Voltage
3.6V
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of Circuits
1
Number of Outputs
6
Package Quantity
90
Packaging
Rail/Tube
Propagation Delay
2ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
10mA
Turn-On Delay Time
10ns
Width
4.5mm
Compliance
RoHS
Compliant
