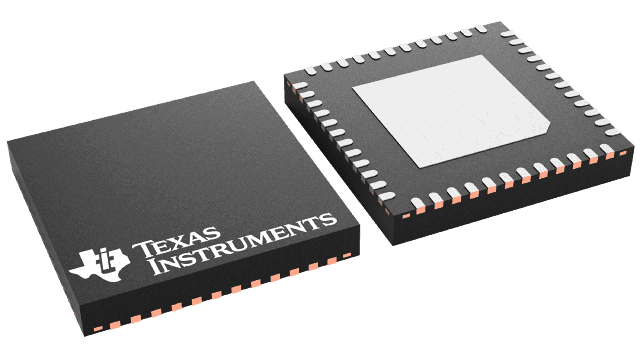

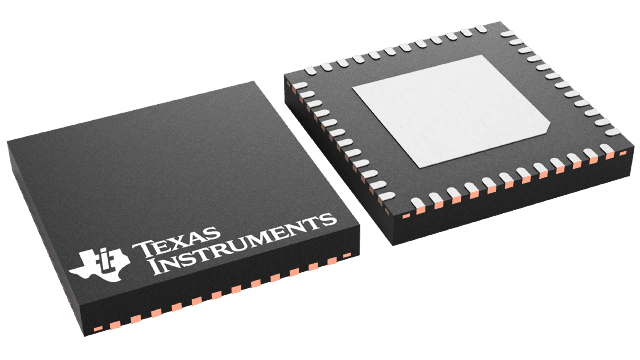

Universal-to-LVDS buffer with 2 inputs and 16 outputs, operating at up to 800MHz. Features low jitter, 2.5ns propagation delay, and 2.5ns turn-on delay. This surface mountable, gold-plated VQFN package component operates from a 2.375V to 2.625V supply. RoHS compliant and lead-free, it is suitable for applications within a -40°C to 85°C temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments CDCLVD1216RGZR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | VQFN |
| Contact Plating | Gold |
| Input | LVCMOS |
| Lead Free | Lead Free |
| Max Frequency | 800MHz |
| Max Input Current | 30uA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 2.625V |
| Min Supply Voltage | 2.375V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Drivers | 16 |
| Number of Elements | 2 |
| Number of Outputs | 16 |
| Number of Receivers | 2 |
| Operating Supply Voltage | 2.5V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Propagation Delay | 2.5ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CDCLVD1216 |
| Turn-On Delay Time | 2.5ns |
| RoHS | Compliant |
