Dual 1:5 high-speed LVPECL fan-out buffer designed for clock distribution. Features a 3.5GHz maximum frequency and a low propagation delay of 0.3ns. Operates from a 2.375V to 3.8V supply voltage with a typical supply current of 380mA. Housed in a 32-VQFN EP package with gold contact plating, suitable for surface mounting. Operating temperature range is -40°C to 85°C.
Frequency3.5GHz
PackageVQFN EP
Current380mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments CDCLVP215RHBT technical specifications.
General
| Package/Case | VQFN EP |
| Contact Plating | Gold |
| Frequency | 3.5GHz |
| Input | LVPECL |
| Input Current | 20mA |
| Lead Free | Lead Free |
| Max Frequency | 3.5GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.8V |
| Min Supply Voltage | 2.375V |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Number of Outputs | 10 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Propagation Delay | 0.3ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CDCLVP215 |
| Supply Current | 380mA |
| Termination | SMD/SMT |
| Turn-On Delay Time | 0.3ns |
| Weight | 0.002533oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments CDCLVP215RHBT Datasheet
Download the complete datasheet for Texas Instruments CDCLVP215RHBT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

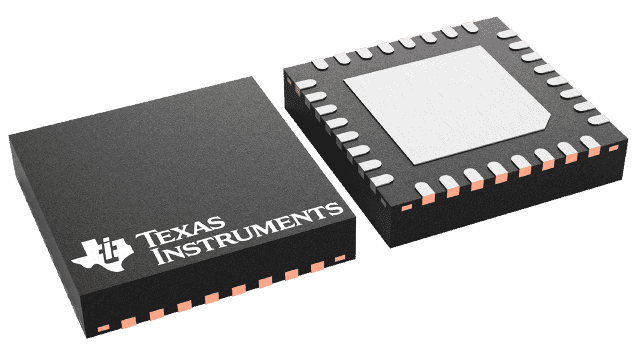

Product Images
