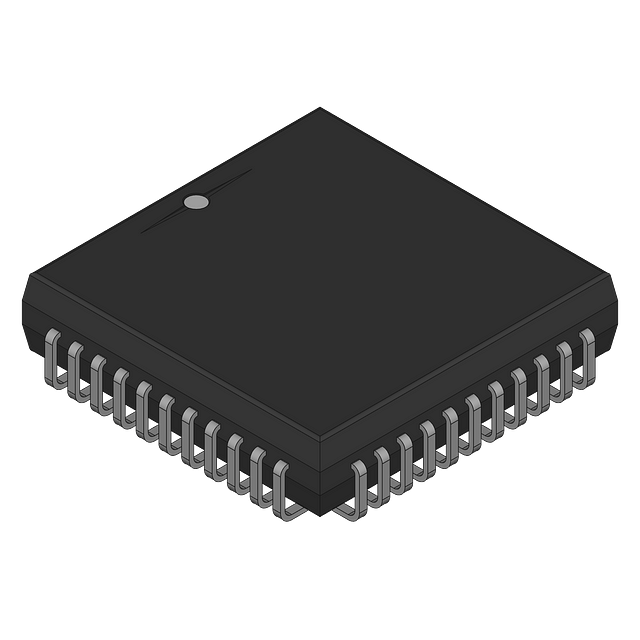

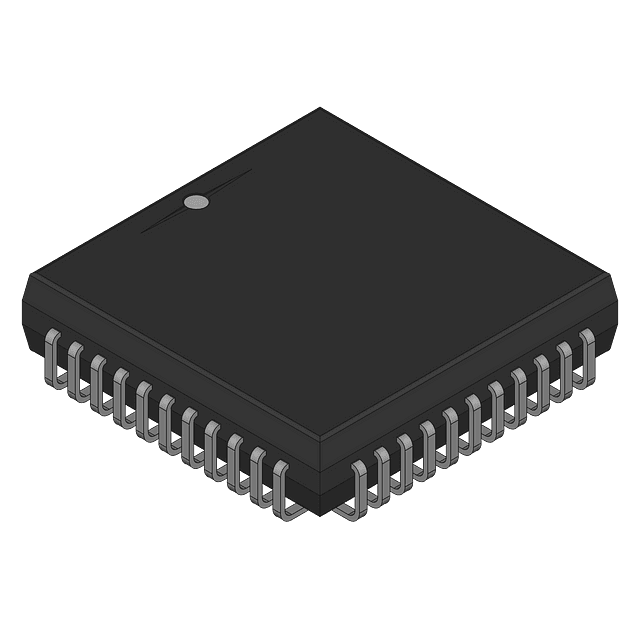

8-Bit CMOS Flash Microcontroller featuring 32KB FLASH memory and 1KB RAM. This microcontroller offers 16 ADC channels, 59 programmable I/O pins, and 3 timers/counters. Interfaces include SPI and UART/USART, with a maximum operating frequency of 20MHz. Operates from 2.7V to 5.5V supply, with an extended temperature range of -40°C to 85°C. Packaged in a 44-PLCC for surface mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments COP8CCR9HVA8/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments COP8CCR9HVA8/NOPB technical specifications.
| Access Time | 20us |
| Package/Case | PLCC |
| Data Bus Width | 8b |
| Frequency | 20MHz |
| Height | 4.06mm |
| Interface | SPI, USART, UART |
| Lead Free | Lead Free |
| Length | 16.51mm |
| Max Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 32KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of ADC Channels | 16 |
| Number of Programmable I/O | 59 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 3 |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RAM Size | 1KB |
| RoHS Compliant | Yes |
| Width | 16.51mm |
| RoHS | Compliant |
