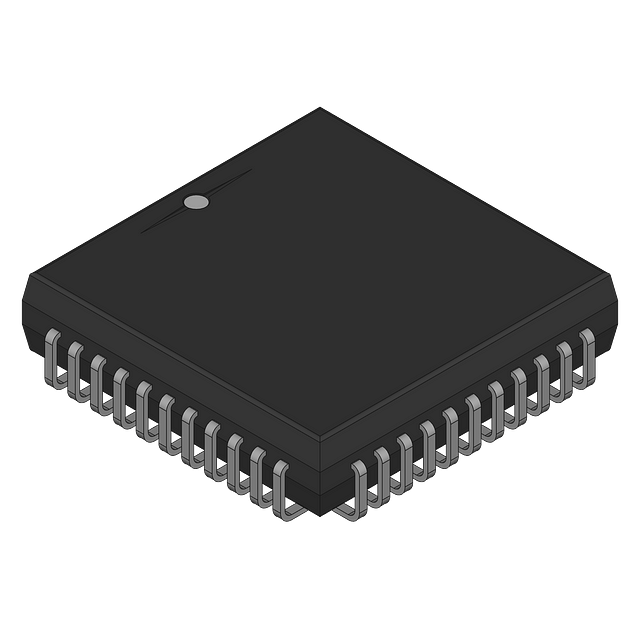

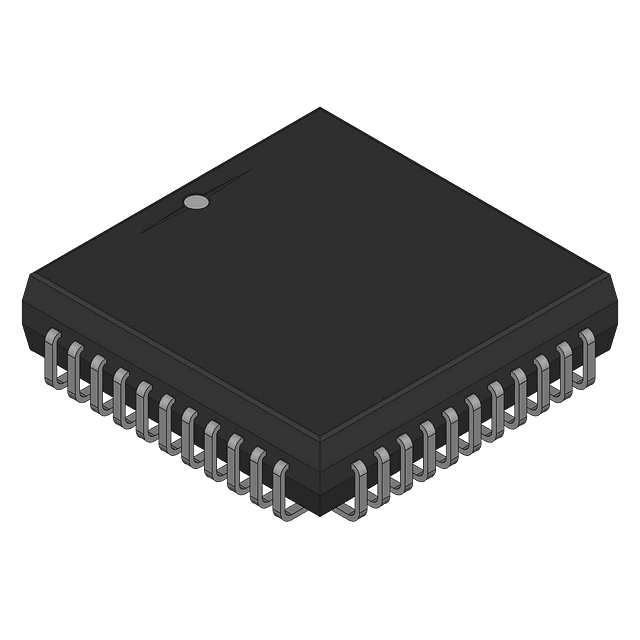

The COP8SCR9HVA8/NOPB is an 8-bit microcontroller from Texas Instruments, featuring 32KB of FLASH memory and 1KB of RAM. It operates at a maximum frequency of 10MHz and supports SPI and UART interfaces. The device has 37 programmable I/O pins and 3 timers/counters. It is packaged in a surface mount PLCC package and is compliant with RoHS regulations. The operating temperature range is -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments COP8SCR9HVA8/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments COP8SCR9HVA8/NOPB technical specifications.
| Package/Case | PLCC |
| Contact Plating | Tin |
| Data Bus Width | 8b |
| Frequency | 10MHz |
| Interface | SPI, USART, UART |
| Lead Free | Lead Free |
| Max Frequency | 10MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 32KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Programmable I/O | 37 |
| Number of Timers/Counters | 3 |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RAM Size | 1KB |
| RoHS Compliant | Yes |
| RoHS | Compliant |
