Technical Specifications
Texas Instruments COP8SDR9HVA8 technical specifications.
General
Package/Case
PLCC
Contact Plating
Tin, Lead
Data Bus Width
8b
Interface
SPI, USART, UART
Lead Free
Contains Lead
Max Frequency
10MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Number of I/Os
37
Number of Programmable I/O
37
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
25
Packaging
Rail/Tube
Peripherals
POR, PWM, WDT
RAM Size
1KB
RoHS Compliant
No
Series
COP8™ 8S
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments COP8SDR9HVA8 Datasheet
Download the complete datasheet for Texas Instruments COP8SDR9HVA8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

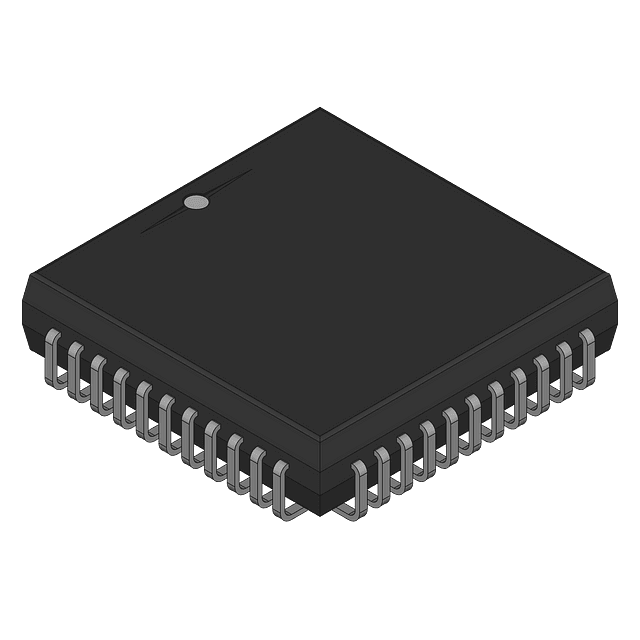

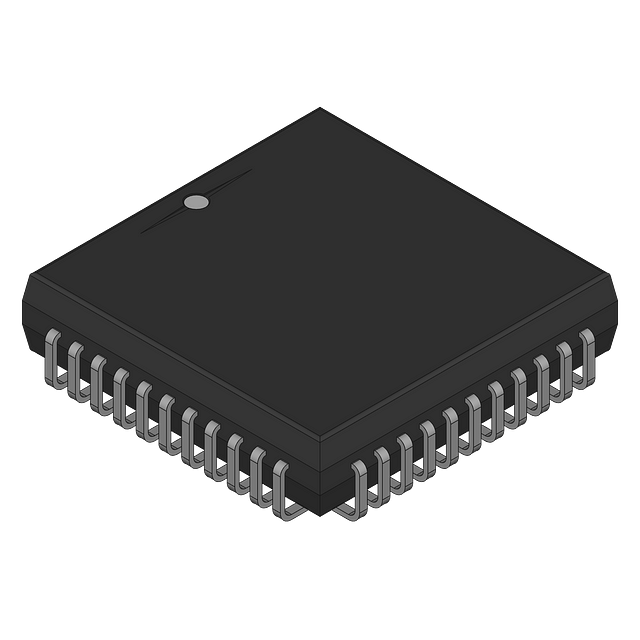

Product Images
