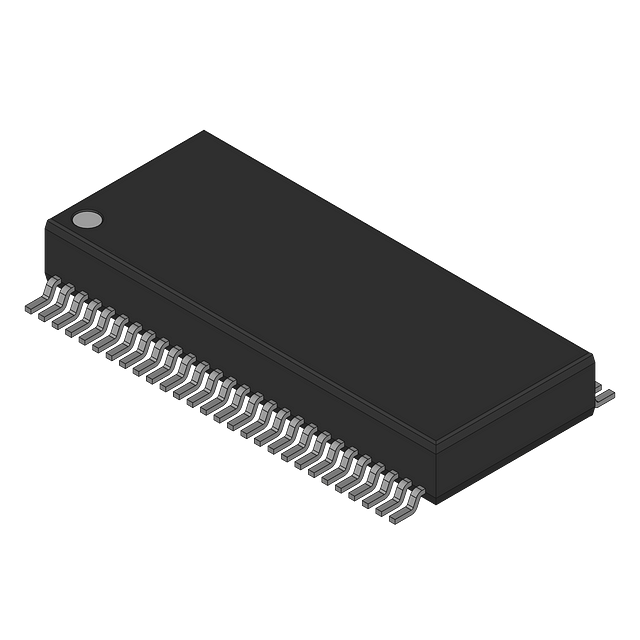

16-Bit Bus Transceiver with 3-State Outputs, featuring bidirectional data flow and inverting logic. This surface-mount component operates from a 4.5V to 5.5V supply, with a typical 5V operating voltage. It offers a high level output current of -32mA and a low level output current of 64mA, with a propagation delay of 5.7ns. The device is housed in a 56-SSOP package with gold contact plating and is RoHS compliant.
PackageSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments CY74FCT16652CTPVCT technical specifications.
General
Package/Case
SSOP
Contact Plating
Gold
Direction
Bidirectional
High Level Output Current
-32mA
Lead Free
Contains Lead
Logic Function
Transceiver, Inverting
Low Level Output Current
64mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Bits
16
Number of Bits per Element
8
Number of Channels
16
Number of Circuits
2
Number of Elements
2
Operating Supply Voltage
5V
Output Type
3-STATE
Package Quantity
1
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
5.7ns
Quiescent Current
5uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
74FCT
Technology
CMOS
Turn-On Delay Time
7.8ns
Weight
0.024508oz
Compliance
RoHS
Compliant
