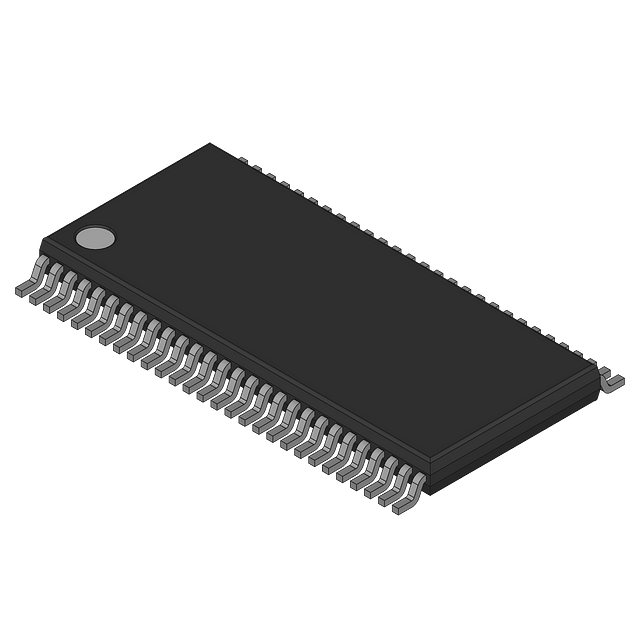

20-bit buffer/driver with 3-state outputs, featuring 10 bits per element and 2 elements for a total of 20 channels. Operates with a supply voltage of 4.5V to 5.5V, with a typical 5V operating voltage. Offers a high level output current of -32mA and a low level output current of 64mA. Packaged in a 56-TSSOP with gold contact plating, suitable for surface mounting. This RoHS compliant component operates across a temperature range of -40°C to 85°C.
PackageTSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments CY74FCT16827ATPACT technical specifications.
General
Package/Case
TSSOP
Contact Plating
Gold
High Level Output Current
-32mA
Lead Free
Lead Free
Logic Function
Buffer, Inverting
Low Level Output Current
64mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Bits
20
Number of Bits per Element
10
Number of Channels
20
Number of Elements
2
Number of Input Lines
20
Number of Inputs
20
Number of Output Lines
20
Number of Outputs
20
Operating Supply Voltage
5V
Output Type
3-STATE
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
15ns
Quiescent Current
500uA
RoHS Compliant
Yes
Series
74FCT
Technology
CMOS
Turn-On Delay Time
23ns
Compliance
RoHS
Compliant
