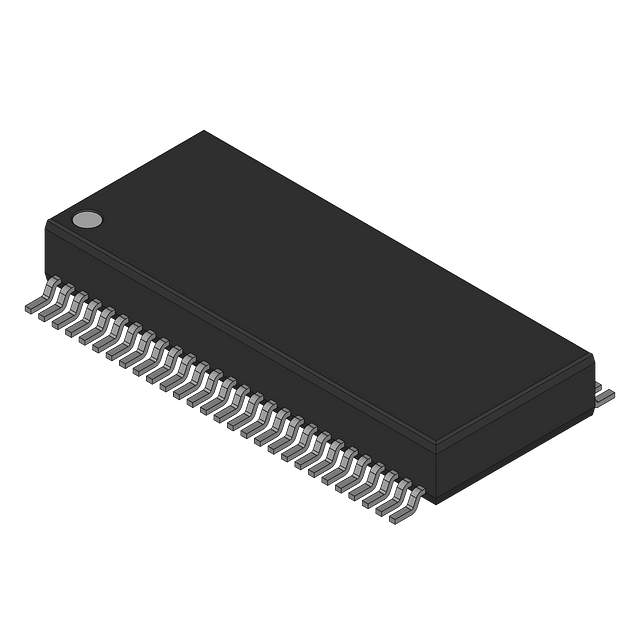

20-bit bus interface D-type latches with 3-state outputs, featuring 2 independent circuits. This surface mount component operates from a 4.5V to 5.5V supply, with a typical 5V operating voltage. It offers a 15ns propagation delay and 1.5ns turn-on delay time, with output currents of 64mA (low) and -32mA (high). The component is RoHS compliant and housed in a 56-SSOP package with gold contact plating, suitable for operation between -40°C and 85°C.
PackageSSOP
Current20.5mA
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments CY74FCT16841CTPVCT technical specifications.
General
Package/Case
SSOP
Contact Plating
Gold
High Level Output Current
-32mA
Independent Circuits
2
Lead Free
Lead Free
Logic Function
D-Type, Latch
Low Level Output Current
64mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Bits
20
Number of Circuits
2
Number of Elements
2
Number of Input Lines
20
Number of Output Lines
20
Operating Supply Voltage
5V
Output Current
64mA
Output Type
3-STATE
Package Quantity
1000
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
15ns
Quiescent Current
500uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
74FCT
Supply Current
20.5mA
Technology
CMOS
Turn-On Delay Time
1.5ns
Weight
0.024508oz
Compliance
RoHS
Compliant
