Octal bus transceiver with 3-state outputs, featuring bidirectional data flow and 8 channels. This surface mount component operates from a 4.75V to 5.25V supply, offering a 5V nominal voltage. Key technical specifications include a 7ns propagation delay and 9.5ns turn-on delay. It supports a high level output current of -32mA and a low level output current of 64mA, with push-pull, 3-state output types. Packaged in a 20-SOIC with gold contact plating, this lead-free and RoHS compliant device is designed for operation between -40°C and 85°C.
PackageSOIC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments CY74FCT245TSOCT technical specifications.
General
Package/Case
SOIC
Contact Plating
Gold
Direction
Bidirectional
Height
2.65mm
High Level Output Current
-32mA
Lead Free
Lead Free
Length
12.8mm
Logic Function
Transceiver, Inverting
Low Level Output Current
64mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Surface Mount
Number of Bits
8
Number of Bits per Element
8
Number of Channels
8
Number of Circuits
8
Number of Elements
1
Operating Supply Voltage
5V
Output Type
PUSH-PULL, 3-STATE
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
7ns
Radiation Hardening
No
RoHS Compliant
Yes
Series
74FCT
Technology
CMOS
Thickness
2.35mm
Turn-On Delay Time
9.5ns
Weight
0.017662oz
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CY74FCT245TSOCT Datasheet
Download the complete datasheet for Texas Instruments CY74FCT245TSOCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

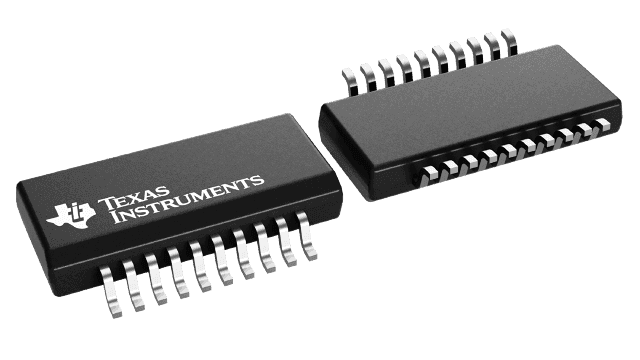

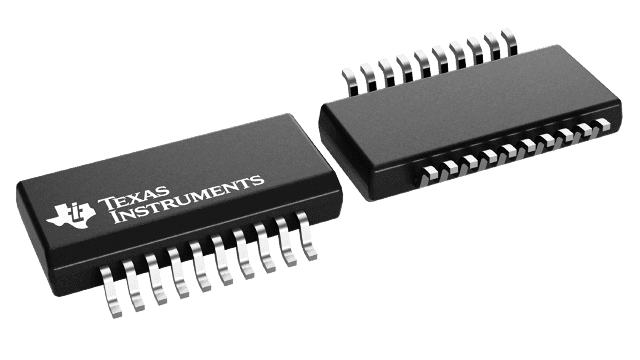

Product Images
