Octal D-Type Register with 3-State Outputs, featuring 8 bits of data storage and positive edge clock triggering. This buffer/line driver operates at a maximum frequency of 250MHz with a propagation delay of 5.2ns. It supports a 5V operating supply voltage (4.75V to 5.25V) and provides 12mA low-level output current. The component is housed in a 20-SOIC surface mount package with gold contact plating and is RoHS compliant.
Frequency250MHz
PackageSOIC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments CY74FCT2574CTSOC technical specifications.
General
Package/Case
SOIC
Clock Edge Trigger Type
Positive Edge
Contact Plating
Gold
Frequency
250MHz
High Level Output Current
-15mA
Input Capacitance
5pF
Lead Free
Lead Free
Logic Function
D-Type
Low Level Output Current
12mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Surface Mount
Number of Bits
8
Number of Bits per Element
8
Number of Elements
1
Operating Supply Voltage
5V
Output Current
12mA
Output Type
3-STATE
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
5.2ns
Quiescent Current
200uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74FCT
Technology
CMOS
Turn-On Delay Time
2ns
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CY74FCT2574CTSOC Datasheet
Download the complete datasheet for Texas Instruments CY74FCT2574CTSOC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

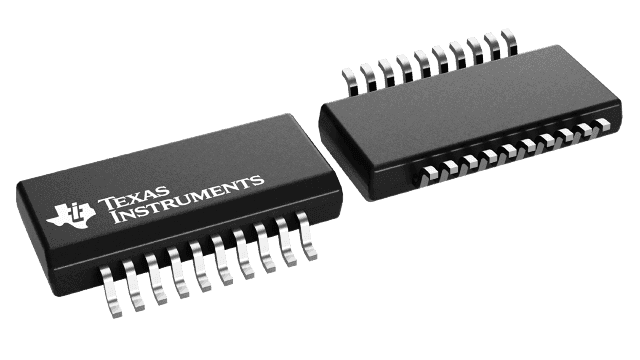

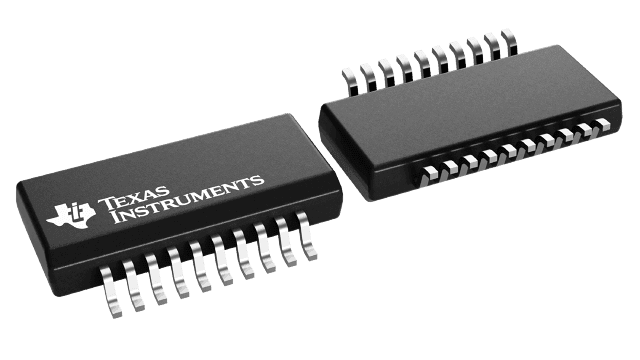

Product Images
