8-channel, 3-state buffer/line driver with TTL-compatible CMOS inputs. Features a 4.75-V to 5.25-V operating supply voltage and 8-bit logic function. Offers 64mA low-level output current and -32mA high-level output current. Packaged in a 20-SSOP with gold contact plating, suitable for surface mounting. Operates across a -40°C to 85°C temperature range.
PackageSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments CY74FCT541ATQCT technical specifications.
General
Package/Case
SSOP
Contact Plating
Gold
High Level Output Current
-32mA
Lead Free
Lead Free
Logic Function
Buffer, Inverting
Low Level Output Current
64mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Surface Mount
Number of Bits
8
Number of Bits per Element
8
Number of Channels
8
Number of Elements
1
Number of Input Lines
8
Number of Inputs
8
Number of Output Lines
3
Number of Outputs
8
Operating Supply Voltage
5V
Output Type
3-STATE
Package Quantity
1
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
4.8ns
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
74FCT
Technology
CMOS
Turn-On Delay Time
6.2ns
Compliance
RoHS
Compliant
Datasheet
Texas Instruments CY74FCT541ATQCT Datasheet
Download the complete datasheet for Texas Instruments CY74FCT541ATQCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

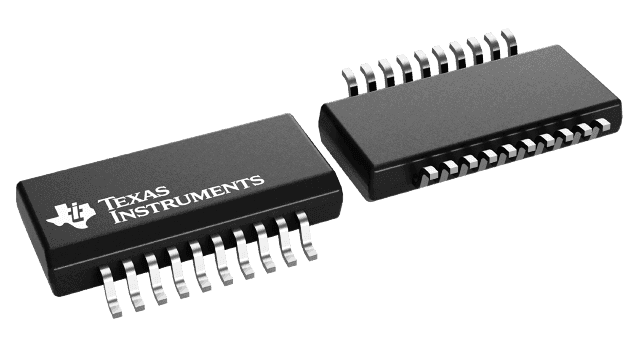

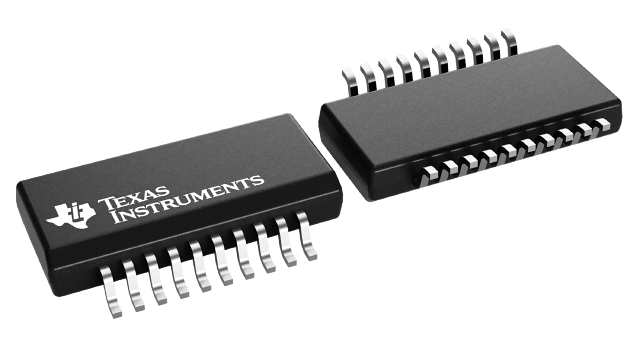

Product Images
