8-channel, 3-state buffer/line driver featuring TTL-compatible CMOS inputs and a 5V operating supply voltage. This surface-mount component offers 64mA low-level output current and -32mA high-level output current, with a propagation delay of 8ns. Designed for operation between -40°C and 85°C, it is RoHS compliant and packaged in a 20-SSOP with gold contact plating.
PackageSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments CY74FCT541TQCT technical specifications.
General
| Package/Case | SSOP |
| Contact Plating | Gold |
| High Level Output Current | -32mA |
| Lead Free | Lead Free |
| Logic Function | Buffer, Inverting |
| Low Level Output Current | 64mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Bits per Element | 8 |
| Number of Channels | 8 |
| Number of Elements | 1 |
| Number of Input Lines | 8 |
| Number of Inputs | 8 |
| Number of Output Lines | 3 |
| Number of Outputs | 8 |
| Operating Supply Voltage | 5V |
| Output Type | 3-STATE |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 8ns |
| RoHS Compliant | Yes |
| Series | 74FCT |
| Technology | CMOS |
| Turn-On Delay Time | 10ns |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments CY74FCT541TQCT Datasheet
Download the complete datasheet for Texas Instruments CY74FCT541TQCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

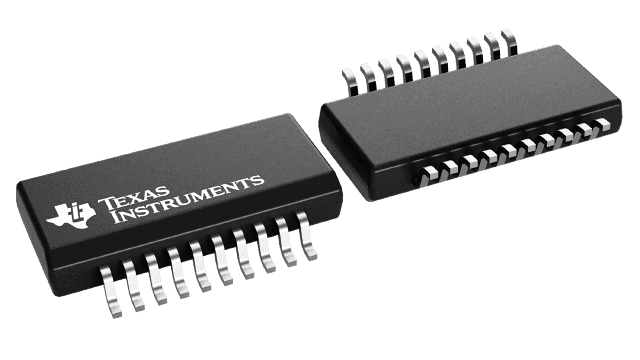

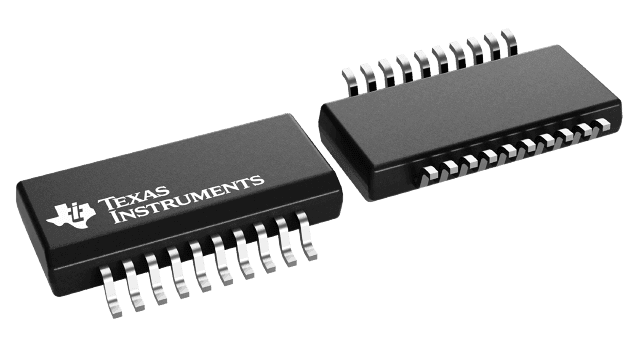

Product Images
