Octal registered bus transceiver featuring 3-state outputs and bidirectional data flow. This CMOS technology component operates with a 5V supply voltage (4.75V to 5.25V) and offers a propagation delay of 6.3ns. Designed for surface mounting in a 24-SSOP package with gold contact plating, it supports 8 bits per element and operates across a temperature range of -40°C to 85°C. The transceiver provides a low-level output current of 64mA and a high-level output current of -32mA, with a turn-on delay time of 9.8ns.
PackageSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Texas Instruments CY74FCT646ATQCT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Texas Instruments CY74FCT646ATQCT technical specifications.
General
| Package/Case | SSOP |
| Contact Plating | Gold |
| Direction | Bidirectional |
| High Level Output Current | -32mA |
| Lead Free | Lead Free |
| Logic Function | Transceiver, Inverting |
| Low Level Output Current | 64mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Bits per Element | 8 |
| Number of Channels | 8 |
| Number of Circuits | 8 |
| Number of Elements | 1 |
| Operating Supply Voltage | 5V |
| Output Type | 3-STATE |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 6.3ns |
| Quiescent Current | 100uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74FCT |
| Technology | CMOS |
| Turn-On Delay Time | 9.8ns |
| Weight | 0.004568oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments CY74FCT646ATQCT Datasheet
Download the complete datasheet for Texas Instruments CY74FCT646ATQCT to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

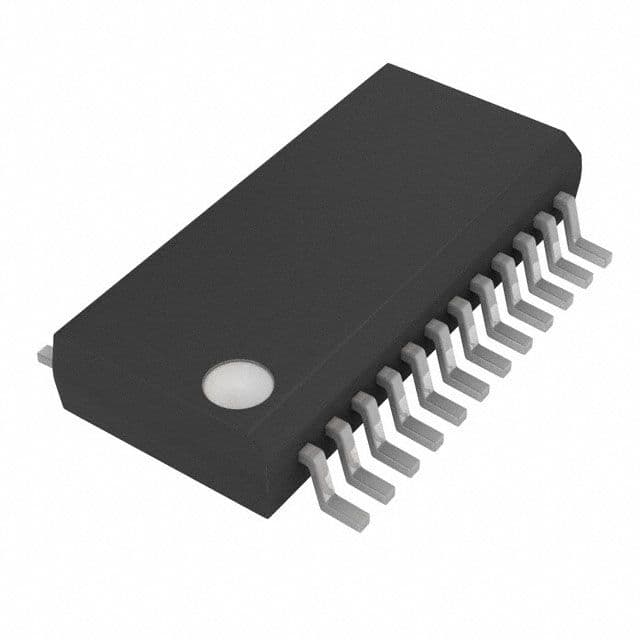

Product Images
