10-bit, single-channel, unipolar voltage output digital-to-analog converter (DAC) with an I2C-compatible serial interface. Features a low supply current of 132µA and a wide operating supply voltage range of 2.7V to 5.5V. Integral nonlinearity is 2 LSB, with a settling time of 6µs. Housed in a compact, lead-free 6-SOT-23-THIN surface-mount package, measuring 2.97mm x 1.65mm x 0.87mm, suitable for operation between -40°C and 125°C.
PackageTSOT
Current132uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DAC101C081CIMK/NOPB technical specifications.
General
Package/Case
TSOT
Differential Output
No
Height
0.87mm
Input Type
SERIAL
Integral Nonlinearity (INL)
2LSB
Interface
I2C
Lead Free
Lead Free
Length
2.97mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
500mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
10
Number of Channels
1
Number of Converters
1
Number of D/A Converters
1
Number of DAC Channels
1
Operating Supply Voltage
5V
Output Polarity
Unipolar
Output Type
Voltage
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
10b
RoHS Compliant
Yes
Settling Time
6us
Supply Current
132uA
Supply Type
Single
Termination
SMD/SMT
Width
1.65mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC101C081CIMK/NOPB Datasheet
Download the complete datasheet for Texas Instruments DAC101C081CIMK/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

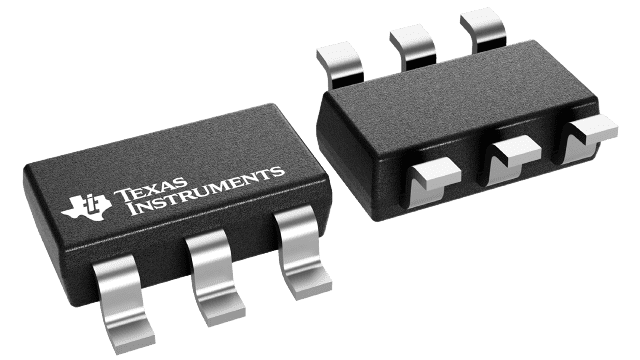

Product Images
