Texas Instruments
DAC104S085CIMM/NOPB
10-Bit Micro Power QUAD Digital-to-Analog Converter with Rail-to-Rail Output 10-VSSOP -40 to 105
PackageVSSOP
Current500uA
MountingSurface Mount
Power1.1mW
Quick Jump:
Technical Specifications
Texas Instruments DAC104S085CIMM/NOPB technical specifications.
General
Package/Case
VSSOP
Differential Output
No
Integral Nonlinearity (INL)
2LSB
Interface
SPI
Lead Free
Lead Free
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
10
Number of Channels
4
Number of D/A Converters
4
Number of DAC Channels
4
Output Type
Voltage
Packaging
Tape and Reel
Power Consumption
1.1mW
Reach SVHC Compliant
No
Resolution
10b
RoHS Compliant
Yes
Settling Time
6us
Supply Current
500uA
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC104S085CIMM/NOPB Datasheet
Download the complete datasheet for Texas Instruments DAC104S085CIMM/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

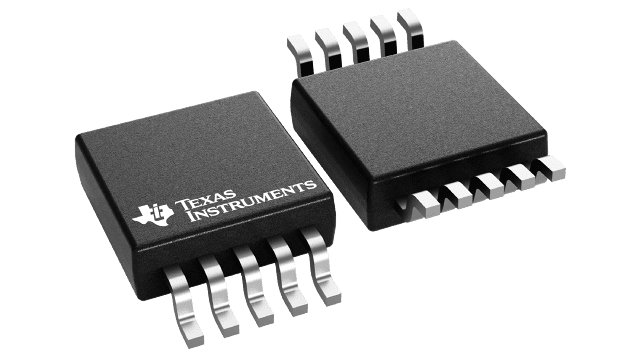

Product Images
