Texas Instruments
DAC104S085CISD
SERIAL INPUT LOADING, 4.5us SETTLING TIME, 10-BIT DAC, PDSO10, LLP-10
MountingSurface Mount
Power1.1mW
Quick Jump:
Technical Specifications
Texas Instruments DAC104S085CISD technical specifications.
General
Differential Output
No
Integral Nonlinearity (INL)
2LSB
Interface
SPI, Serial, 3-WIRE
Lead Free
Contains Lead
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
10
Number of Converters
4
Number of D/A Converters
4
Number of DAC Channels
4
Output Type
Voltage
Package Quantity
1
Packaging
Tape and Reel
Power Consumption
1.1mW
Radiation Hardening
No
Resolution
10b
RoHS Compliant
No
Settling Time
6us
Supply Type
Single
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments DAC104S085CISD Datasheet
Download the complete datasheet for Texas Instruments DAC104S085CISD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

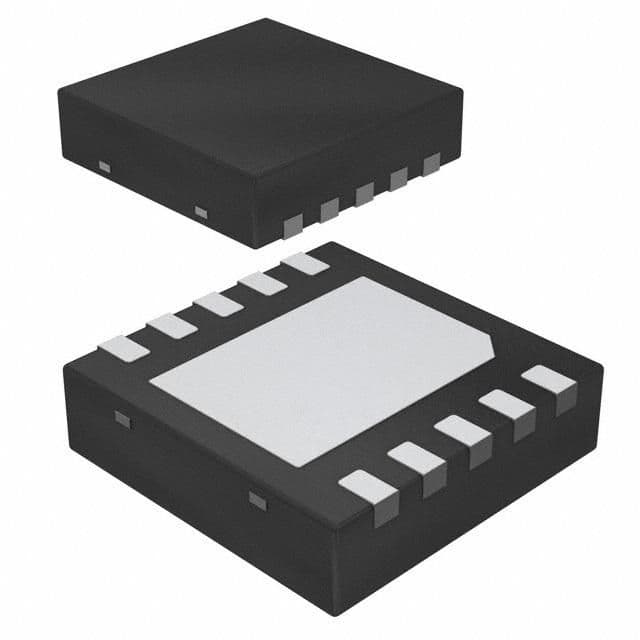

Product Images
