Texas Instruments
DAC121C081CISDX/NOPB
12-Bit Micro Power Digital-to-Analog Converter with an I2C-Compatible Interface 6-WSON -40 to 125
Quick Jump:
Technical Specifications
Texas Instruments DAC121C081CISDX/NOPB technical specifications.
General
| Contact Plating | Tin, Matte |
| Integral Nonlinearity (INL) | 8LSB |
| Interface | I2C |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of Bits | 12 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of DAC Channels | 1 |
| Output Polarity | Unipolar |
| Output Type | Voltage |
| Package Quantity | 4500 |
| Packaging | Tape and Reel |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Series | DAC121C081 |
| Settling Time | 8.5us |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DAC121C081CISDX/NOPB Datasheet
Download the complete datasheet for Texas Instruments DAC121C081CISDX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

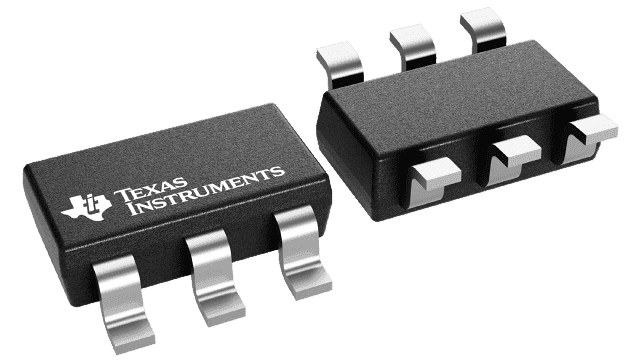

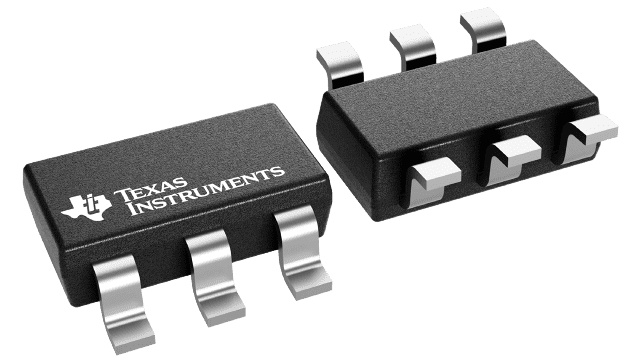

Product Images
