Texas Instruments
DAC121S101CIMKX
SERIAL INPUT LOADING, 12us SETTLING TIME, 12-BIT DAC, PDSO6, PLASTIC, SOT-6
PackageSOT-23-6
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DAC121S101CIMKX technical specifications.
General
Package/Case
SOT-23-6
Integral Nonlinearity (INL)
8LSB
Interface
SPI, Serial, 3-WIRE
Lead Free
Contains Lead
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.72mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
12
Number of Converters
1
Number of DAC Channels
1
Output Type
Voltage
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Resolution
12b
RoHS Compliant
No
Series
DAC121S101
Settling Time
10us
Supply Type
Single
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments DAC121S101CIMKX Datasheet
Download the complete datasheet for Texas Instruments DAC121S101CIMKX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

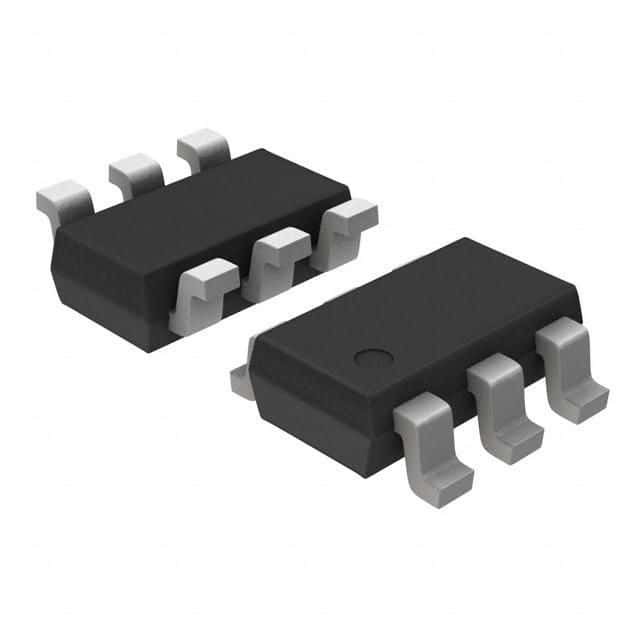

Product Images
