Technical Specifications
Texas Instruments DAC122S085CISD technical specifications.
General
Integral Nonlinearity (INL)
8LSB
Interface
SPI, Serial, 3-WIRE
Lead Free
Contains Lead
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Power Dissipation
2.3mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
12
Number of Channels
2
Number of Converters
2
Number of DAC Channels
2
Output Type
Voltage
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Resolution
12b
RoHS Compliant
No
Series
DAC122S085
Settling Time
6us
Supply Type
Single
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments DAC122S085CISD Datasheet
Download the complete datasheet for Texas Instruments DAC122S085CISD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

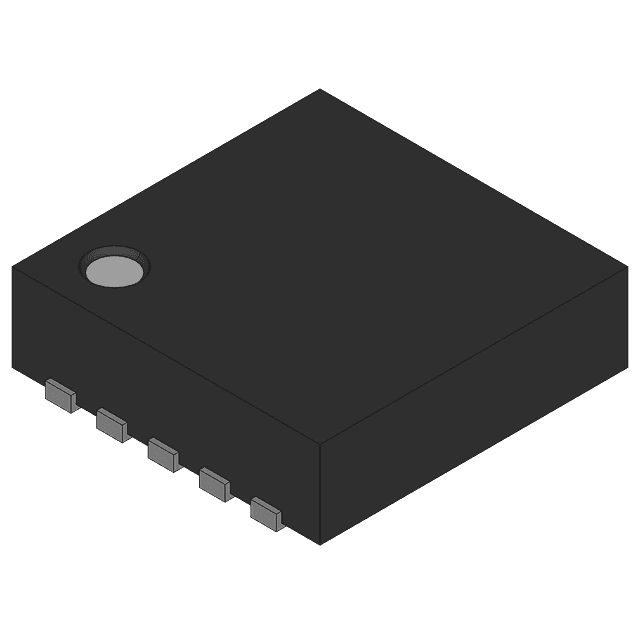

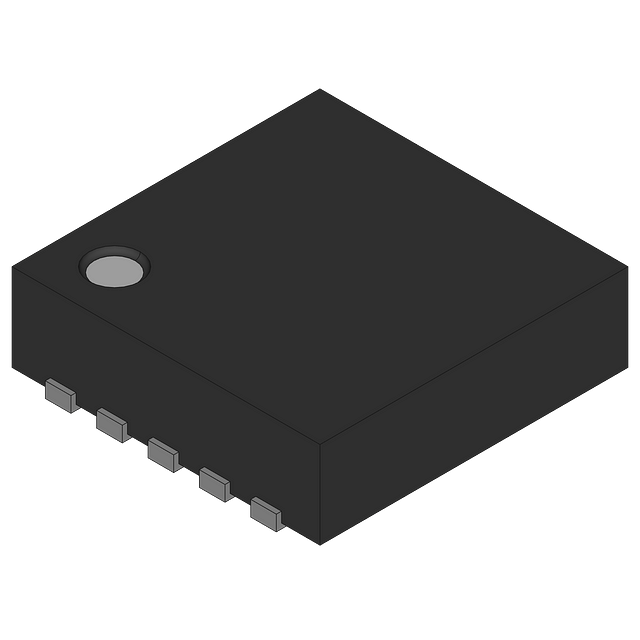

Product Images
