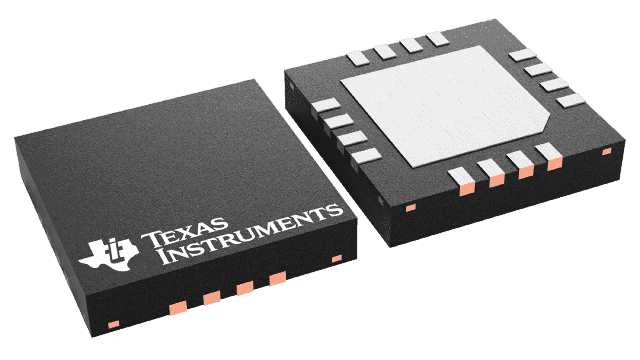

The DAC161S055CISQX/NOPB is a 16-bit single digital-to-analog converter (DAC) from Texas Instruments. It operates over a supply voltage range of 2.7V to 5.25V and has a maximum power consumption of 5.5mW. The device features a unipolar output type and is available in a tape and reel packaging configuration. It is compliant with the RoHS directive and has a maximum operating temperature of 105°C, with a minimum operating temperature of -40°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments DAC161S055CISQX/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments DAC161S055CISQX/NOPB technical specifications.
| Integral Nonlinearity (INL) | 3LSB |
| Interface | SPI |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 2.7V |
| Number of Bits | 16 |
| Number of Converters | 1 |
| Number of DAC Channels | 1 |
| Output Polarity | Unipolar |
| Output Type | Voltage |
| Package Quantity | 4500 |
| Packaging | Tape and Reel |
| Power Consumption | 5.5mW |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Series | DAC161S055 |
| Settling Time | 5us |
| RoHS | Compliant |
