10-bit Digital-to-Analog Converter (DAC) with a 500 MS/s conversion rate. Features include 0.04 LSB differential nonlinearity and 0.15 LSB integral nonlinearity. Supports DDR, LVDS, and Parallel interfaces. Operates from a 3.15V to 3.45V supply voltage and has a maximum power dissipation of 375mW. Packaged in a 64-VQFN with gold contact plating, suitable for surface mounting.
PackageVQFN
Current28mA
MountingSurface Mount
Power375mW
Quick Jump:
Technical Specifications
Texas Instruments DAC3151IRGCT technical specifications.
General
Package/Case
VQFN
Contact Plating
Gold
Conversion Rate
500MS/s
Differential Nonlinearity
0.04LSB
Differential Output
Yes
Integral Nonlinearity (INL)
0.15LSB
Interface
DDR, LVDS, Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
375mW
Max Supply Voltage
3.45V
Min Supply Voltage
3.15V
Mount
Surface Mount
Number of Bits
10
Number of Channels
1
Number of Converters
1
Number of D/A Converters
1
Number of DAC Channels
1
Output Polarity
Unipolar
Package Quantity
250
Packaging
Tape and Reel
Power Consumption
375mW
Reach SVHC Compliant
No
Reference Voltage
1.2V
Resolution
10b
RoHS Compliant
Yes
Sampling Rate
500MS/s
Settling Time
11ns
Supply Current
28mA
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC3151IRGCT Datasheet
Download the complete datasheet for Texas Instruments DAC3151IRGCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

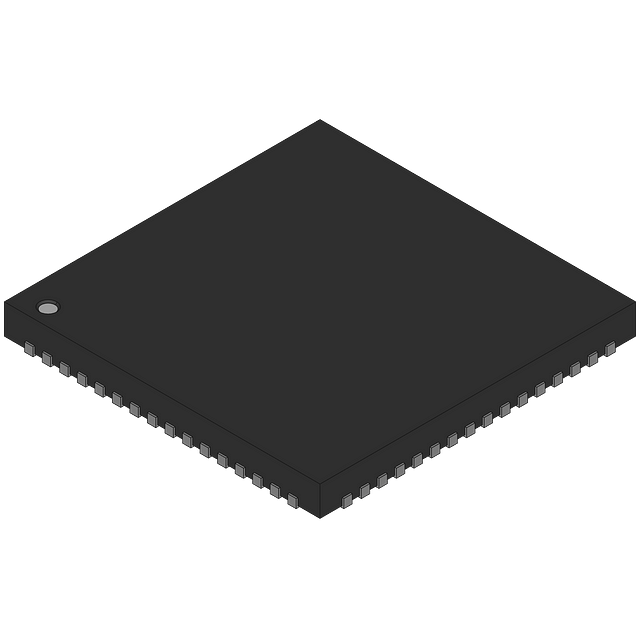

Product Images
