Dual-channel, 12-bit digital-to-analog converter (DAC) with a 500 MS/s conversion rate. Features include 0.5 LSB integral nonlinearity, 79 dB spurious-free dynamic range, and a 0.01 µs settling time. Supports DDR, LVDS, and parallel interfaces. Operates from a 3V to 3.6V supply with a typical 3.3V operating voltage. Packaged in a 48-VQFN with gold contact plating, this lead-free, RoHS-compliant component is supplied on tape and reel.
PackageVQFN
Current63mA
Power270mW
Quick Jump:
Technical Specifications
Texas Instruments DAC3162IRGZR technical specifications.
General
Package/Case
VQFN
Contact Plating
Gold
Conversion Rate
500MS/s
Integral Nonlinearity (INL)
0.5LSB
Interface
DDR, LVDS, Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
320mW
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Number of Bits
12
Number of Channels
2
Number of Converters
2
Number of DAC Channels
2
Operating Supply Voltage
3.3V
Output Polarity
Unipolar
Package Quantity
2500
Packaging
Tape and Reel
Power Consumption
270mW
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
500000000S/s
Series
DAC3162
Settling Time
0.01us
Spurious-free dynamic range (SFDR)
79dB
Supply Current
63mA
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC3162IRGZR Datasheet
Download the complete datasheet for Texas Instruments DAC3162IRGZR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

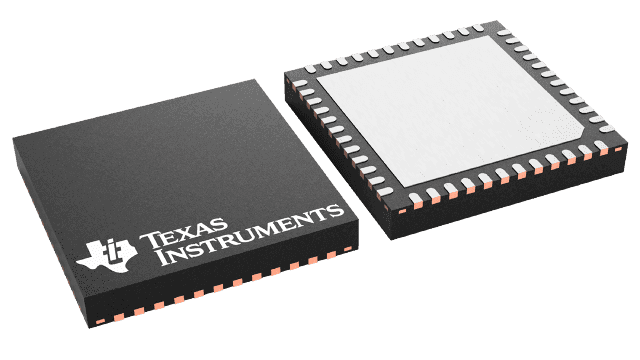

Product Images
