Dual-channel, 16-bit digital-to-analog converter (DAC) with an 800 MSPS conversion rate. Features differential inputs and outputs, supporting LVDS and parallel interfaces. Offers 77dB signal-to-noise ratio and 85dB spurious-free dynamic range. Operates from a 1.7V to 3.6V supply voltage, with a temperature range of -40°C to 85°C. Packaged in a 48-VQFN EP with gold contact plating.
PackageVQFN EP
Current340mA
Power1.15W
Quick Jump:
Technical Specifications
Texas Instruments DAC3283IRGZT technical specifications.
General
Package/Case
VQFN EP
Contact Plating
Gold
Conversion Rate
800MS/s
Differential Output
Yes
Input Type
DIFFERENTIAL
Integral Nonlinearity (INL)
4LSB
Interface
LVDS, Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.45W
Max Supply Voltage
3.6V
Min Supply Voltage
1.7V
Number of Bits
16
Number of Channels
2
Number of Converters
2
Number of D/A Converters
2
Number of DAC Channels
2
Operating Supply Current
149mA
Output Polarity
Unipolar
Package Quantity
250
Packaging
Tape and Reel
Power Consumption
1.15W
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
800MS/s
Settling Time
0.0104us
Signal to Noise Ratio (SNR)
77dB
Spurious-free dynamic range (SFDR)
85dB
Supply Current
340mA
Weight
0.004938oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC3283IRGZT Datasheet
Download the complete datasheet for Texas Instruments DAC3283IRGZT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

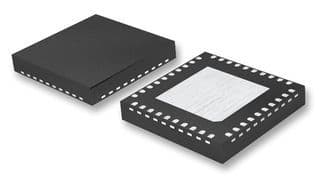

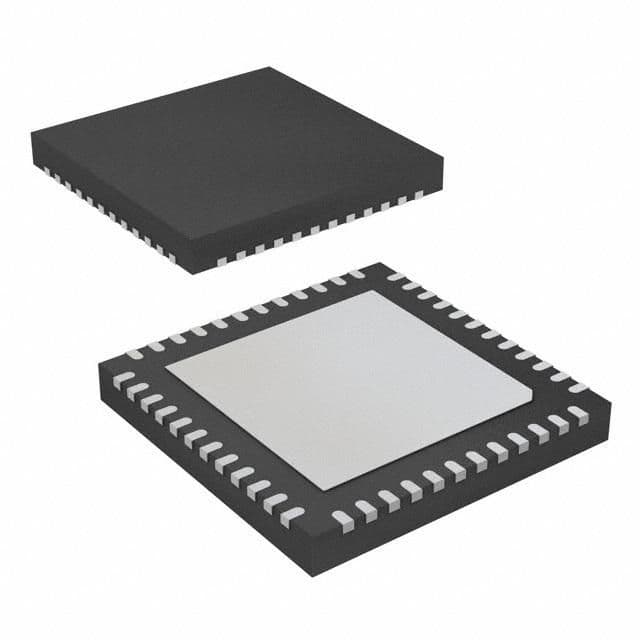

Product Images
