Dual-channel, 16-bit digital-to-analog converter (DAC) with a 1.25 GSPS conversion rate. Features LVDS and parallel interfaces, offering differential outputs. Operates with a 3.3V supply voltage and a temperature range of -40°C to 85°C. This surface-mount component boasts 16-bit resolution and a settling time of 10ns.
PackageLFBGA
Current135mA
MountingSurface Mount
Power800mW
Quick Jump:
Technical Specifications
Texas Instruments DAC3482IZAYR technical specifications.
General
Package/Case
LFBGA
Contact Plating
Copper, Tin, Silver
Conversion Rate
1.25GS/s
Differential Output
Yes
Integral Nonlinearity (INL)
4LSB
Interface
LVDS, Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
980mW
Max Supply Voltage
3.46V
Min Supply Voltage
3.14V
Mount
Surface Mount
Number of Bits
16
Number of Channels
2
Number of Converters
2
Number of D/A Converters
2
Number of DAC Channels
2
Operating Supply Voltage
3.3V
Output Polarity
Unipolar
Package Quantity
1000
Packaging
Tape and Reel
Power Consumption
800mW
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
1250MS/s
Settling Time
10ns
Supply Current
135mA
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC3482IZAYR Datasheet
Download the complete datasheet for Texas Instruments DAC3482IZAYR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

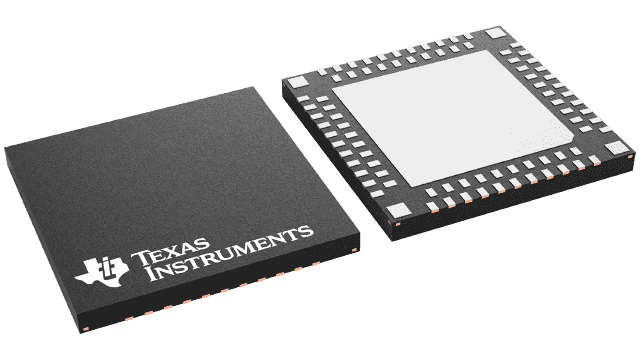

Product Images
