Quad-channel, 16-bit digital-to-analog converter (DAC) with a 1.25 GS/s conversion rate. Features LVDS and parallel interfaces, 4 DAC channels, and 16-bit resolution. Offers 82dB SFDR and 0.01µs settling time. Operates from a 1.2V to 3.3V supply voltage range, with a maximum power dissipation of 1.32W. Packaged in an 88-WQFN-MR with gold contact plating, this lead-free and RoHS compliant component is supplied on tape and reel.
PackageQFN
Current135mA
Power1.2W
Quick Jump:
Technical Specifications
Texas Instruments DAC3484IRKDR technical specifications.
General
Package/Case
QFN
Contact Plating
Gold
Conversion Rate
1.25GS/s
Integral Nonlinearity (INL)
4LSB
Interface
LVDS, Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.32W
Max Supply Voltage
3.3V
Min Supply Voltage
1.2V
Number of Bits
16
Number of Converters
4
Number of DAC Channels
4
Output Polarity
Unipolar
Package Quantity
2000
Packaging
Tape and Reel
Power Consumption
1.2W
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
1250MS/s
Series
DAC3484
Settling Time
0.01us
Spurious-free dynamic range (SFDR)
82dB
Supply Current
135mA
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC3484IRKDR Datasheet
Download the complete datasheet for Texas Instruments DAC3484IRKDR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

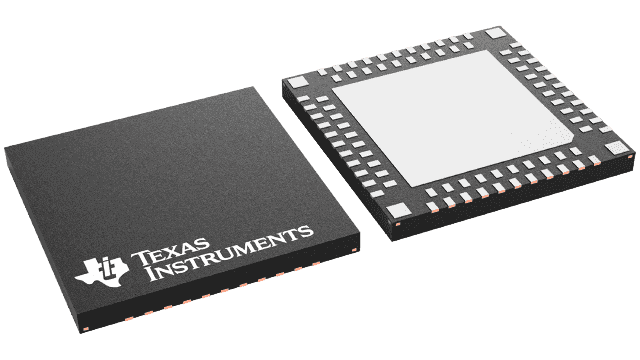

Product Images
