Quad-channel, 16-bit digital-to-analog converter (DAC) with a 1.25 GSPS conversion rate. Features LVDS and parallel interfaces, offering a 1x-16x interpolating capability. Integral nonlinearity is 4 LSB, with SFDR at 73 dB and a settling time of 0.01 µs. Operates from 1.8V to 3.3V supply voltages, with a maximum power dissipation of 1.75W. Packaged in LFBGA with lead-free copper, tin, and silver plating, suitable for operation between -40°C and 85°C.
PackageLFBGA
Current165mA
Power1.44W
Quick Jump:
Technical Specifications
Texas Instruments DAC34H84IZAY technical specifications.
General
Package/Case
LFBGA
Contact Plating
Copper, Tin, Silver
Conversion Rate
1.25GS/s
Differential Output
Yes
Integral Nonlinearity (INL)
4LSB
Interface
LVDS, Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.75W
Max Supply Voltage
3.3V
Min Supply Voltage
1.8V
Number of Bits
16
Number of Converters
4
Number of D/A Converters
4
Number of DAC Channels
4
Output Polarity
Unipolar
Package Quantity
160
Packaging
Tray
Power Consumption
1.44W
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
1250MS/s
Settling Time
0.01us
Spurious-free dynamic range (SFDR)
73dB
Supply Current
165mA
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC34H84IZAY Datasheet
Download the complete datasheet for Texas Instruments DAC34H84IZAY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

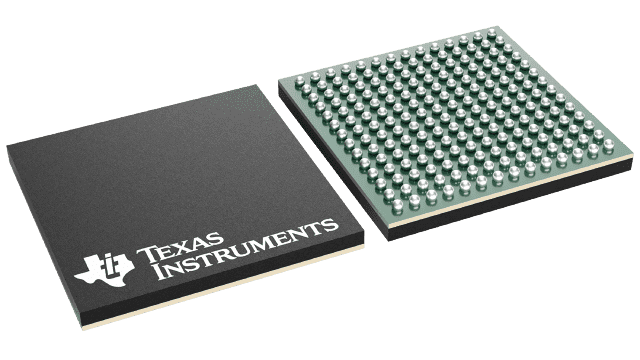

Product Images
