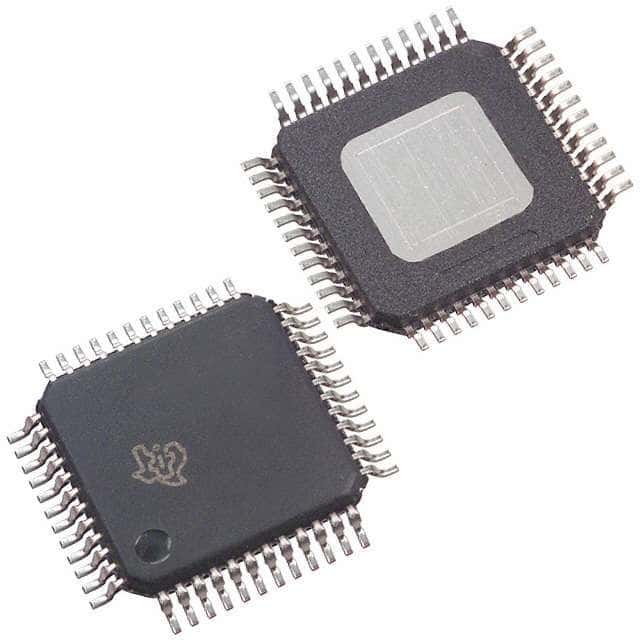

14-bit, 400 MSPS digital-to-analog converter (DAC) with a single channel. Features LVDS and parallel interfaces, 2 LSB differential nonlinearity, and 4 LSB integral nonlinearity. Operates from a 3.15V to 3.6V supply voltage with a nominal supply current of 115mA. Housed in a 48-HTQFP package with gold contact plating, this lead-free and RoHS compliant component offers a spurious-free dynamic range of 74dB and a settling time of 0.012µs.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments DAC5675AIPHPR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | HTQFP |
| Contact Plating | Gold |
| Conversion Rate | 400MS/s |
| Differential Nonlinearity | 2LSB |
| Integral Nonlinearity (INL) | 4LSB |
| Interface | LVDS, Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 900mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3.15V |
| Nominal Supply Current | 115mA |
| Number of Bits | 14 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of DAC Channels | 1 |
| Operating Supply Voltage | 3.3V |
| Output Polarity | Unipolar |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Consumption | 660mW |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Sampling Rate | 400000000S/s |
| Series | DAC5675A |
| Settling Time | 0.012us |
| Spurious-free dynamic range (SFDR) | 74dB |
| Supply Type | Analog, Digital |
| Weight | 0.004744oz |
| RoHS | Compliant |
