12-bit, single-channel Digital-to-Analog Converter (DAC) offering 225 kS/s conversion rate and 1 LSB integral and differential nonlinearity. Features an SPI interface, unipolar voltage output, and a low supply current of 110 µA with a maximum power dissipation of 880 µW. Operates from 1.8V to 5.5V supply, with a wide temperature range of -40°C to 125°C. Packaged in a 6-pin SC70 (SC) with gold contact plating, suitable for battery-powered applications.
PackageSC
Current110uA
Quick Jump:
Technical Specifications
Texas Instruments DAC7311IDCKT technical specifications.
General
Package/Case
SC
Contact Plating
Gold
Conversion Rate
225KS/s
Differential Nonlinearity
1LSB
Differential Output
No
Integral Nonlinearity (INL)
1LSB
Interface
SPI
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
880uW
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Number of Bits
12
Number of Channels
1
Number of Converters
1
Number of D/A Converters
1
Number of DAC Channels
1
Output Polarity
Unipolar
Output Type
Voltage
Package Quantity
250
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
225KS/s
Settling Time
6us
Signal to Noise Ratio (SNR)
81dB
Spurious-free dynamic range (SFDR)
65dB
Supply Current
110uA
Termination
SMD/SMT
Thickness
900um
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC7311IDCKT Datasheet
Download the complete datasheet for Texas Instruments DAC7311IDCKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

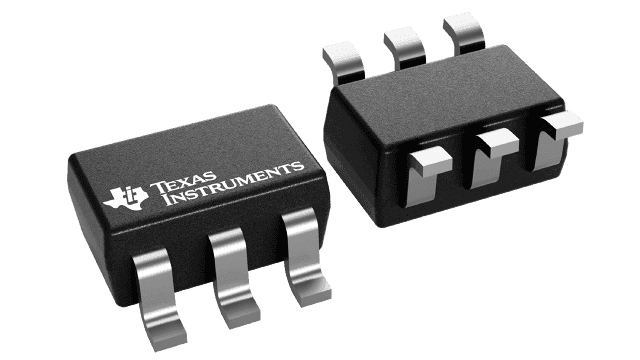

Product Images
