12-bit dual voltage output digital-to-analog converter featuring an ultralow glitch architecture. Achieves a 1MS/s conversion rate with 0.5LSB differential nonlinearity and 1LSB integral nonlinearity. Operates from a 2.7V to 5.5V supply, consuming a nominal 300uA. Interface is SPI, with gold contact plating and a 5us settling time. Housed in a 16-VQFN package, this RoHS compliant component operates from -40°C to 105°C.
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments DAC7552IRGTRG4 technical specifications.
General
Package/Case
VQFN
Contact Plating
Gold
Conversion Rate
1MS/s
Differential Nonlinearity
0.5LSB
Integral Nonlinearity (INL)
1LSB
Interface
SPI
Lead Free
Lead Free
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Nominal Supply Current
300uA
Number of Bits
12
Number of Converters
2
Number of DAC Channels
2
Output Polarity
Unipolar
Output Type
Voltage
Package Quantity
3000
Packaging
Tape and Reel
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
1000000S/s
Series
DAC7552
Settling Time
5us
Supply Type
Analog, Digital
Weight
0.000808oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC7552IRGTRG4 Datasheet
Download the complete datasheet for Texas Instruments DAC7552IRGTRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

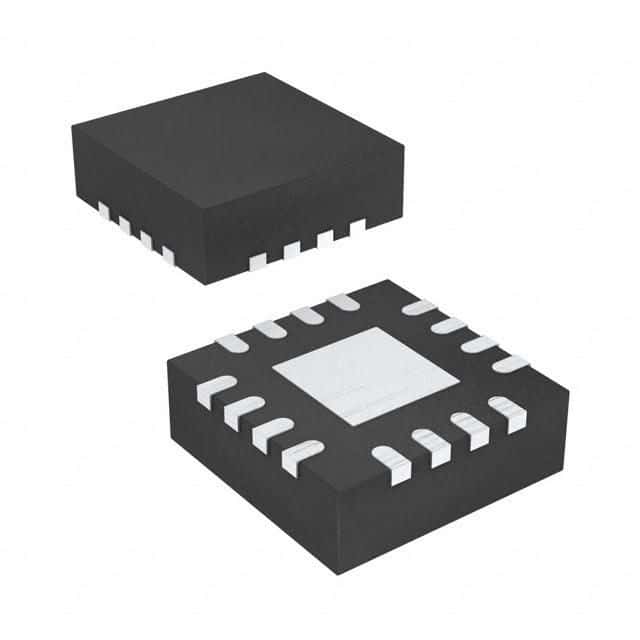

Product Images
