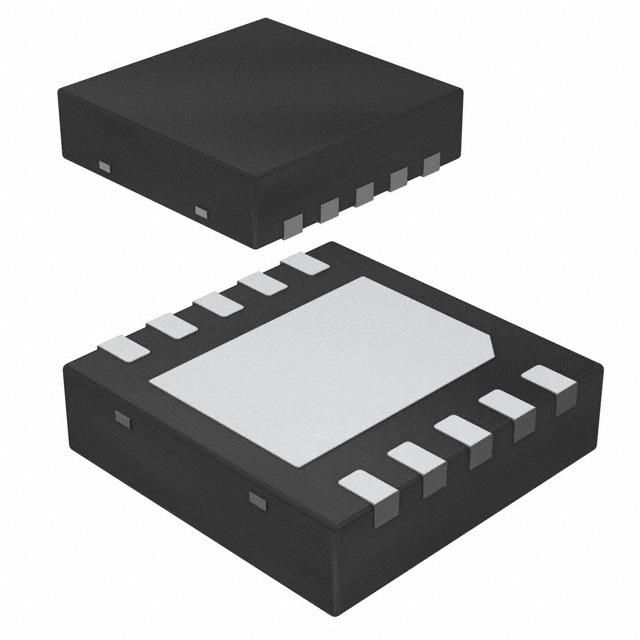

The DAC7562SDSCR is a 12-bit dual digital-to-analog converter (DAC) from Texas Instruments. It operates over a temperature range of -40°C to 125°C and is compatible with lead-free processes. The device features a resolution of 12 bits and a settling time of 7us. It communicates via the SPI interface and is packaged in the HVSON package type.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments DAC7562SDSCR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments DAC7562SDSCR technical specifications.
| Contact Plating | Gold |
| Differential Nonlinearity | 0.25LSB |
| Integral Nonlinearity (INL) | 0.75LSB |
| Interface | SPI |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 7.15mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of Bits | 12 |
| Number of Converters | 2 |
| Number of DAC Channels | 2 |
| Output Polarity | Unipolar |
| Output Type | Voltage |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Series | DAC7562 |
| Settling Time | 7us |
| Supply Type | Single |
| RoHS | Compliant |
