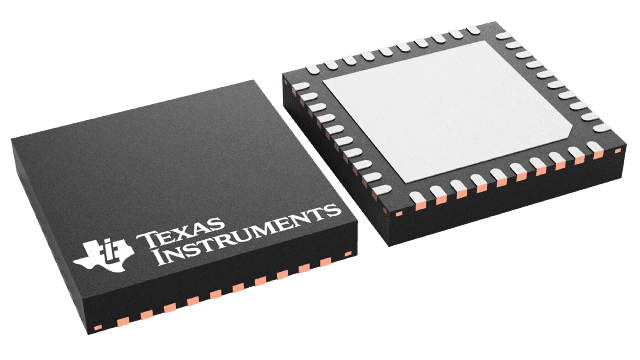

Quad 12-bit digital-to-analog converter featuring 1LSB integral and differential nonlinearity, and 0.5LSB full-scale error. This serial input DAC supports bipolar and unipolar output voltage with a +/-16.5V output range. Operating from a 4.75V to 5V dual supply, it offers a 6us settling time and 260mW power consumption. Encased in a 48-TQFP package with gold contact plating, this RoHS compliant component operates across a -40°C to 105°C temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments DAC7716SPFB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments DAC7716SPFB technical specifications.
| Package/Case | TQFP |
| Contact Plating | Gold |
| Differential Nonlinearity | 1LSB |
| Differential Output | No |
| Full Scale Error | 0.5LSB |
| Height | 1.05mm |
| Integral Nonlinearity (INL) | 1LSB |
| Interface | SPI |
| Lead Free | Lead Free |
| Length | 7.2mm |
| Min Dual Supply Voltage | 4.75V |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Number of Bits | 12 |
| Number of Channels | 4 |
| Number of Converters | 4 |
| Number of D/A Converters | 4 |
| Number of DAC Channels | 4 |
| Operating Supply Voltage | 5V |
| Output Polarity | Unipolar, Bipolar |
| Output Type | Voltage |
| Package Quantity | 250 |
| Packaging | Tray |
| Power Consumption | 260mW |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Settling Time | 6us |
| Width | 7.2mm |
| RoHS | Compliant |
