12-bit, single-channel digital-to-analog converter (DAC) with a 167 kS/s conversion rate. Features bipolar and unipolar voltage output, a parallel interface, and a settling time of 4 µs. Operates with dual supply voltages from ±11.4V to ±16.5V, consuming 270mW nominal power. Integral nonlinearity is 0.5 LSB, and differential nonlinearity is 0.75 LSB. Packaged in a 28-SOIC with gold contact plating, suitable for operation between -40°C and 85°C.
PackageSOIC
Power270mW
Quick Jump:
Technical Specifications
Texas Instruments DAC813AU/1K technical specifications.
General
Package/Case
SOIC
Contact Plating
Gold
Conversion Rate
167KS/s
Differential Nonlinearity
0.75LSB
Dual Supply Voltage
15V
Integral Nonlinearity (INL)
0.5LSB
Interface
Parallel
Lead Free
Lead Free
Max Dual Supply Voltage
16.5V
Min Dual Supply Voltage
11.4V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Nominal Supply Current
13mA
Number of Bits
12
Number of Converters
1
Number of DAC Channels
1
Output Polarity
Bipolar, Unipolar
Output Type
Voltage
Package Quantity
1000
Packaging
Tape and Reel
Power Consumption
270mW
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
167KS/s
Series
DAC813
Settling Time
4us
Weight
0.025778oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC813AU/1K Datasheet
Download the complete datasheet for Texas Instruments DAC813AU/1K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

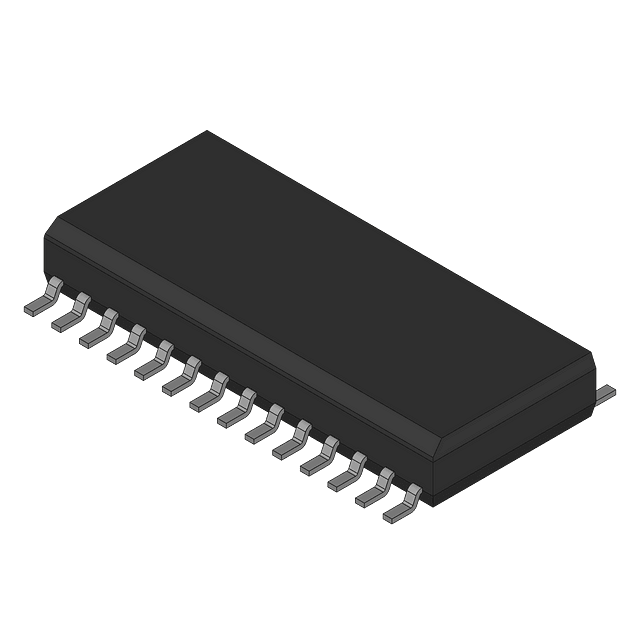

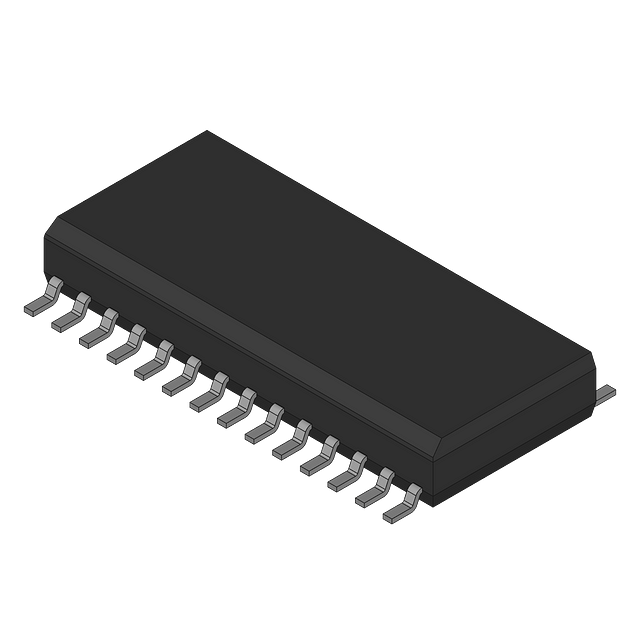

Product Images
