Eight-channel, 16-bit voltage output digital-to-analog converter (DAC) featuring an ultra-low glitch and a 2.5V, 2ppm/°C internal reference. This component offers 1LSB differential nonlinearity and 12LSB integral nonlinearity, with an SPI interface for data transfer. Operating from a 2.7V to 5.5V supply, it consumes a low 1µA operating supply current. The device is housed in a 16-TSSOP package with gold contact plating, suitable for operation between -40°C and 125°C.
PackageTSSOP
Power2.2mW
Quick Jump:
Technical Specifications
Texas Instruments DAC8568ICPW technical specifications.
General
Package/Case
TSSOP
Contact Plating
Gold
Differential Nonlinearity
1LSB
Height
1.15mm
Integral Nonlinearity (INL)
12LSB
Interface
SPI
Lead Free
Lead Free
Length
5mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
6.8mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Bits
16
Number of Channels
8
Number of Converters
8
Number of DAC Channels
8
Operating Supply Current
1uA
Operating Supply Voltage
5V
Output Polarity
Unipolar
Output Type
Voltage
Package Quantity
90
Packaging
Rail/Tube
Power Consumption
2.2mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
225KS/s
Series
DAC8568
Settling Time
5us
Signal to Noise Ratio (SNR)
83dB
Spurious-free dynamic range (SFDR)
63dB
Supply Type
Single
Weight
0.002222oz
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC8568ICPW Datasheet
Download the complete datasheet for Texas Instruments DAC8568ICPW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

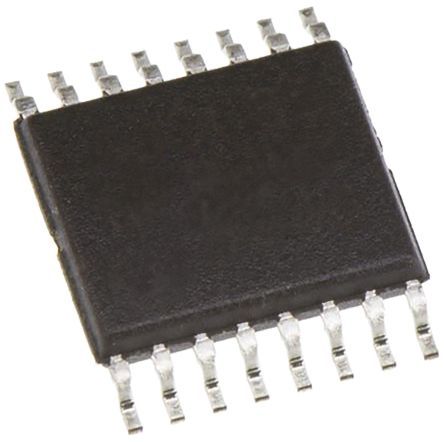

Product Images
