Octal-channel, 16-bit voltage output digital-to-analog converter featuring an SPI interface and a 2.5V, 2ppm/°C internal reference. This component offers 8 DAC channels with a unipolar output polarity, 1LSB differential nonlinearity, and 12LSB integral nonlinearity. Operating from a single 2.7V to 5.5V supply, it provides 83dB signal-to-noise ratio and 63dB spurious-free dynamic range. The device is housed in a 16-TSSOP package with gold contact plating, suitable for operation between -40°C and 125°C.
PackageTSSOP
Power2.2mW
Quick Jump:
Technical Specifications
Texas Instruments DAC8568ICPWR technical specifications.
General
Package/Case
TSSOP
Contact Plating
Gold
Differential Nonlinearity
1LSB
Differential Output
No
Integral Nonlinearity (INL)
12LSB
Interface
SPI
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Bits
16
Number of Converters
8
Number of D/A Converters
8
Number of DAC Channels
8
Output Polarity
Unipolar
Output Type
Voltage
Package Quantity
2000
Packaging
Tape and Reel
Power Consumption
2.2mW
Resolution
16b
RoHS Compliant
Yes
Settling Time
5us
Signal to Noise Ratio (SNR)
83dB
Spurious-free dynamic range (SFDR)
63dB
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC8568ICPWR Datasheet
Download the complete datasheet for Texas Instruments DAC8568ICPWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

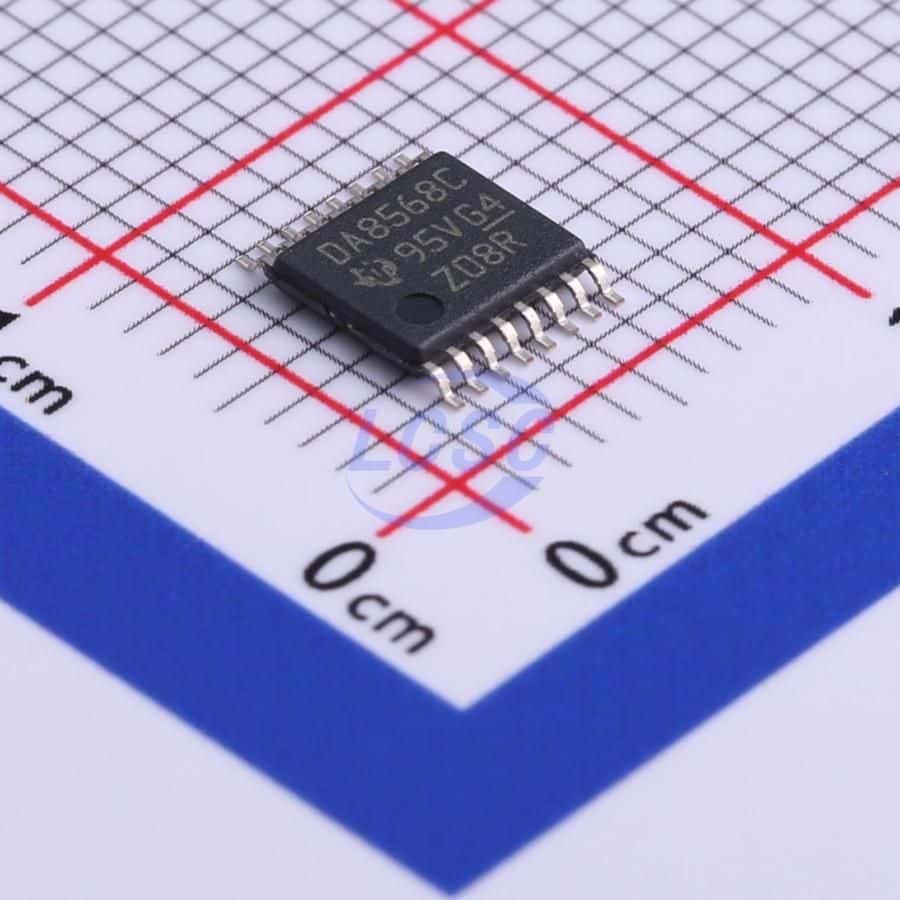

Product Images
