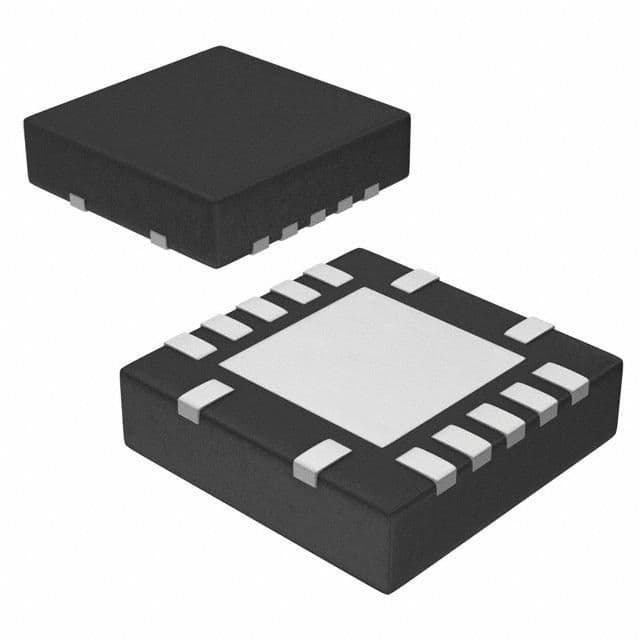

16-bit, single-channel digital-to-analog converter (DAC) with a serial SPI interface. Features a 2MS/s conversion rate and 1µs settling time. Offers 1LSB differential nonlinearity and 2LSB integral nonlinearity. Operates from a 2.7V to 5.5V single supply voltage. Packaged in a VQFN, tape and reel.
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments DAC8831IBRGYRG4 technical specifications.
General
Package/Case
VQFN
Conversion Rate
2MS/s
Differential Nonlinearity
1LSB
Full Scale Error
7LSB
Integral Nonlinearity (INL)
2LSB
Interface
SPI, Serial
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Bits
16
Number of Channels
1
Number of Converters
1
Number of DAC Channels
1
Output Type
SERIAL, Voltage
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
2000000S/s
Series
DAC8831
Settling Time
1us
Supply Type
Single
Compliance
RoHS
Compliant
