10-bit digital-to-analog converter (DAC) with a 200MS/s sampling rate and 0.03µs settling time. Features 0.5LSB differential nonlinearity and 1LSB integral nonlinearity, with 76dB spurious-free dynamic range. Operates from a 2.7V to 5.5V supply voltage, consuming 24mA nominal current. Packaged in a 28-TSSOP with gold contact plating, suitable for -40°C to 85°C operation.
PackageTSSOP
Power170mW
Quick Jump:
Technical Specifications
Texas Instruments DAC900E/2K5 technical specifications.
General
Package/Case
TSSOP
Contact Plating
Gold
Conversion Rate
200MS/s
Differential Nonlinearity
0.5LSB
Integral Nonlinearity (INL)
1LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Nominal Supply Current
24mA
Number of Channels
1
Number of Converters
1
Number of DAC Channels
1
Operating Supply Voltage
5V
Package Quantity
2500
Packaging
Tape and Reel
Power Consumption
170mW
Resolution
10b
RoHS Compliant
Yes
Sampling Rate
200MS/s
Series
DAC900
Settling Time
0.03us
Spurious-free dynamic range (SFDR)
76dB
Weight
0.004145oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DAC900E/2K5 Datasheet
Download the complete datasheet for Texas Instruments DAC900E/2K5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

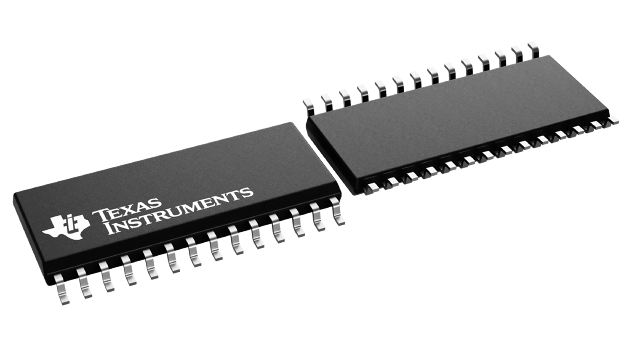

Product Images
