1W isolated unregulated DC/DC converter in a 7-SOP package. Features a 5V fixed output voltage with 200mA maximum output current, operating from a 4.5V to 5.5V input range. Offers 1kV isolation voltage and an efficiency of 80%, with built-in over-temperature protection (OTP) and short-circuit protection (SCP). Operates across a wide temperature range of -40°C to 100°C.
PackageSOP
Power1W
Quick Jump:
Technical Specifications
Texas Instruments DCP010505BP-U technical specifications.
General
Package/Case
SOP
Current - Output 1
200mA
Efficiency
80%
Features
OTP, SCP
Height
0.21inch
Isolation Voltage
1kV
Lead Free
Lead Free
Length
0.78inch
Max Input Voltage
5.5V
Min Input Voltage
4.5V
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Max Output Power
970mW
Max Output Voltage
5.25V
Min Output Voltage
4.75V
Max Power Dissipation
100mW
Nominal Output Voltage
5V
Number of Outputs
1
Output Current
200mA
Output Power
1W
Output Type
Fixed
Output Voltage
5V
Package Quantity
25
Packaging
Rail/Tube
Quiescent Current
20mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DCP01B
Termination
SMD/SMT
Voltage - Output 1
5V
Width
0.33inch
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DCP010505BP-U Datasheet
Download the complete datasheet for Texas Instruments DCP010505BP-U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

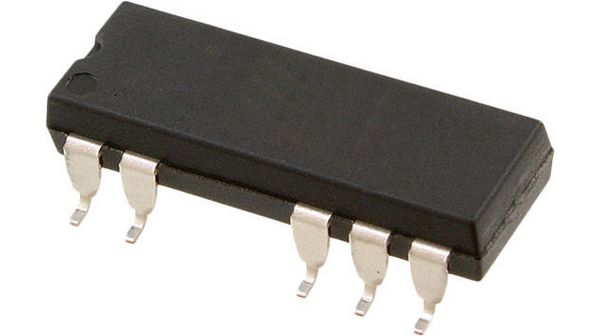

Product Images
