2W DC-DC converter module with dual 12V and -12V fixed outputs. Features 88% efficiency, 1kV isolation voltage, and over-temperature protection (OTP). Operates from a 10.8V to 13.2V input, delivering up to 83mA per output. Packaged in a 7-pin PDIP with a 2W maximum output power.
PackagePDIP
Power2W
Quick Jump:
Technical Specifications
Texas Instruments DCP021212DP technical specifications.
General
| Package/Case | PDIP |
| Current - Output 1 | 83mA |
| Current - Output 2 | 80mA |
| Efficiency | 88% |
| Features | OTP |
| Height | 0.21inch |
| Isolation Voltage | 1kV |
| Lead Free | Lead Free |
| Length | 0.78inch |
| Max Input Voltage | 13.2V |
| Min Input Voltage | 10.8V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 83mA |
| Max Output Power | 2W |
| Max Output Voltage | 12.6V |
| Min Output Voltage | 11.4V |
| Max Power Dissipation | 384mW |
| Nominal Output Voltage | 12V |
| Number of Outputs | 2 |
| Output Current | 83mA |
| Output Power | 2W |
| Output Type | Fixed |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Quiescent Current | 16mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | DCP02 |
| Thickness | 3.94mm |
| Topology | Boost, Push-Pull |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Width | 0.33inch |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DCP021212DP Datasheet
Download the complete datasheet for Texas Instruments DCP021212DP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

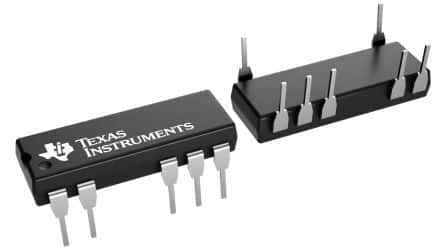

Product Images
