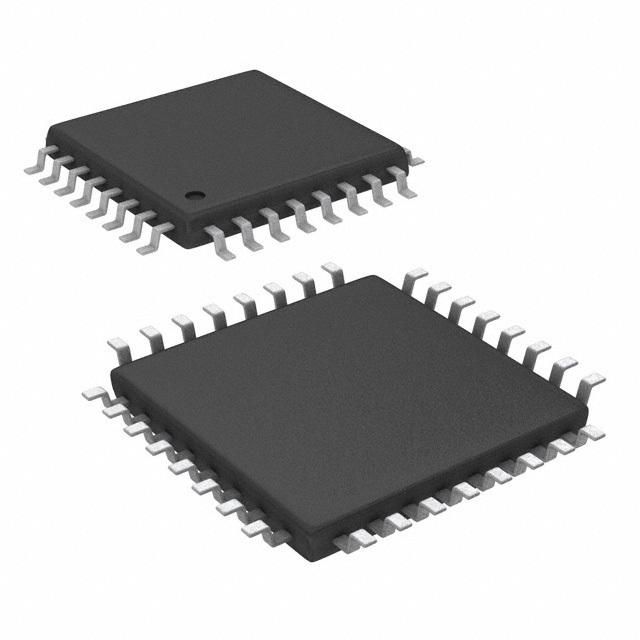

20-bit dual analog-to-digital converter (ADC) with single-ended inputs and SPI interface. Features a 2 kS/s conversion rate and operates from a 4.75V to 5.25V supply. Housed in a TQFP package, this lead-free component offers a maximum power dissipation of 100mW and operates within a temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments DDC112Y/250G4 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments DDC112Y/250G4 technical specifications.
| Package/Case | TQFP |
| Conversion Rate | 2KS/s |
| Input Type | SINGLE-ENDED |
| Interface | SPI |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 100mW |
| Max Supply Voltage (DC) | 5.25V |
| Min Supply Voltage (DC) | 4.75V |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Nominal Supply Current | 14.8mA |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 2 |
| Number of Bits | 20 |
| Number of Channels | 2 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 2 |
| Operating Supply Voltage | 5V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Power Consumption | 80mW |
| Power Dissipation | 100mW |
| Resolution | 20b |
| RoHS Compliant | Yes |
| Sampling Rate | 2KS/s |
| RoHS | Compliant |
Download the complete datasheet for Texas Instruments DDC112Y/250G4 to view detailed technical specifications.
