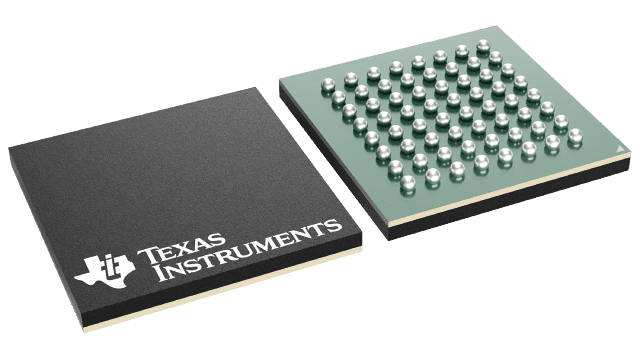

20-bit, 32-channel current-input Analog-to-Digital Converter (ADC) featuring a 3.125 kS/s conversion rate. This integrated circuit offers a 20-bit resolution and supports a single-ended input type with an SPI interface. Operating from a 2.7V to 3.6V analog supply and 4.75V to 5.25V digital supply, it has a maximum power dissipation of 288mW. Packaged in an LFBGA, this RoHS compliant component is suitable for operation between 0°C and 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments DDC232CZXGT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LFBGA |
| Conversion Rate | 3.125KS/s |
| Input Type | SINGLE-ENDED |
| Interface | SPI |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 288mW |
| Max Supply Voltage (DC) | 3.6V |
| Min Supply Voltage (DC) | 2.7V |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Number of Analog Inputs | 32 |
| Number of Bits | 20 |
| Number of Channels | 32 |
| Number of Converters | 16 |
| Number of Elements | 16 |
| Number of Inputs | 32 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Consumption | 224mW |
| Power Dissipation | 288mW |
| Resolution | 20b |
| RoHS Compliant | Yes |
| Sampling Rate | 3KS/s |
| Supply Type | Analog, Digital |
| RoHS | Compliant |
