64-channel, current-input analog-to-digital converter featuring 20-bit resolution. This integrated circuit offers an SPI interface and operates with a supply voltage range of 2.7V to 3.6V, with a maximum supply voltage of 5.1V. Designed for a temperature range of 0°C to 70°C, it consumes 192mW of power. The component is supplied in a 100-LFBGA package, on tape and reel, and is RoHS compliant.
PackageLFBGA
Power192mW
Quick Jump:
Technical Specifications
Texas Instruments DDC264CKZAWR technical specifications.
General
Package/Case
LFBGA
Interface
SPI
Lead Free
Lead Free
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage (DC)
3.6V
Min Supply Voltage (DC)
2.7V
Max Supply Voltage
5.1V
Min Supply Voltage
4.9V
Number of A/D Converters
32
Number of Analog Inputs
64
Number of Bits
20
Number of Converters
32
Number of Elements
32
Number of Inputs
64
Operating Supply Voltage
5V
Package Quantity
1000
Packaging
Tape and Reel
Power Consumption
192mW
Radiation Hardening
No
Resolution
20b
RoHS Compliant
Yes
Sampling Rate
6.25KS/s
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DDC264CKZAWR Datasheet
Download the complete datasheet for Texas Instruments DDC264CKZAWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

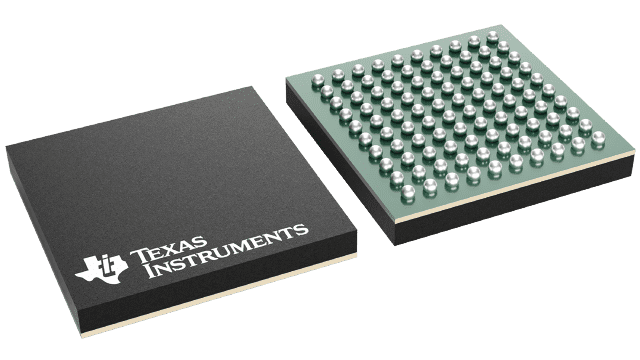

Product Images
