1-Channel Ethernet PHY, 10/100Mbps data rate, 3.3V operating supply voltage. Features a 48-pin LQFP surface mount package with dimensions of 7mm x 7mm x 1.4mm. Supports serial interface, operates from 3V to 3.6V, with a maximum supply current of 105mA and power dissipation of 290mW. Operating temperature range is -40°C to 85°C. RoHS compliant and lead-free.
PackageLQFP
Current105mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DP83640TVV/NOPB technical specifications.
General
| Package/Case | LQFP |
| Data Rate | 100Mbps |
| Height | 1.4mm |
| Interface | Serial |
| Lead Free | Lead Free |
| Length | 7mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 290mW |
| Max Supply Current | 105mA |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Ports | 1 |
| Number of Transceivers | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 250 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 105mA |
| Weight | 0.006409oz |
| Width | 7mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DP83640TVV/NOPB Datasheet
Download the complete datasheet for Texas Instruments DP83640TVV/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

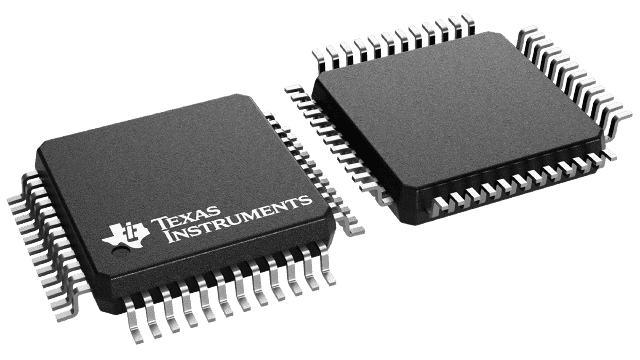

Product Images
