10/100Mbps Ethernet PHY, single-channel, 80-pin QFP package for surface mounting. Features a 5V operating supply voltage (4.75V to 5.25V) with a maximum supply current of 120mA. Operates within a temperature range of 0°C to 70°C. RoHS compliant, this component is supplied in a tray with 84 units.
PackageQFP
Current150mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DP83843BVJE/NOPB technical specifications.
General
| Package/Case | QFP |
| Data Rate | 100Mbps |
| Height | 2mm |
| Lead Free | Contains Lead |
| Length | 14mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 120mA |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 84 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | DP83843 |
| Supply Current | 150mA |
| Width | 14mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DP83843BVJE/NOPB Datasheet
Download the complete datasheet for Texas Instruments DP83843BVJE/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

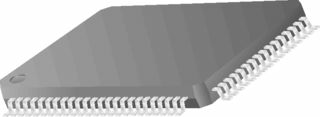

Product Images
