Automotive Ethernet PHY, 1-channel, 10/100Mbps data rate, supporting a 3.3V operating supply voltage with a range of 3V to 3.6V. This surface mount component features a 48-pin LQFP package with dimensions of 7mm length, 7mm width, and 1.4mm thickness. It offers a serial interface and operates within a temperature range of 0°C to 70°C, consuming 92mA of supply current.
PackageLQFP
Current92mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DP83848CVV/NOPB technical specifications.
General
| Package/Case | LQFP |
| Data Rate | 100Mbps |
| Height | 1.4mm |
| Interface | Serial |
| Lead Free | Lead Free |
| Length | 7mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Ports | 1 |
| Operating Supply Voltage | 3.3V |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 92mA |
| Termination | SMD/SMT |
| Thickness | 1.4mm |
| Width | 7mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DP83848CVV/NOPB Datasheet
Download the complete datasheet for Texas Instruments DP83848CVV/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

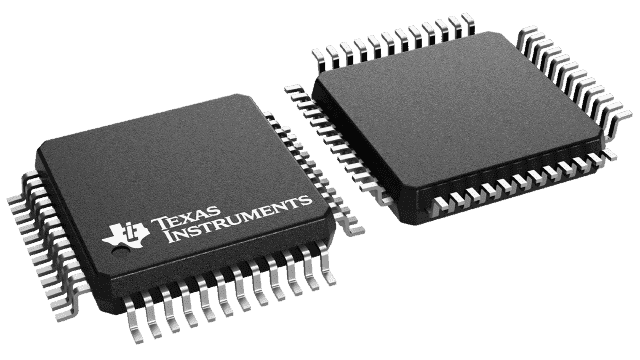

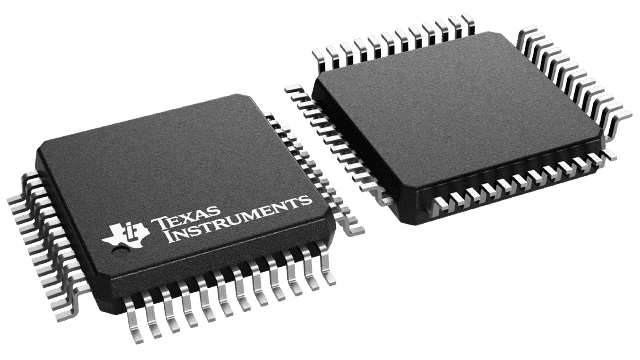

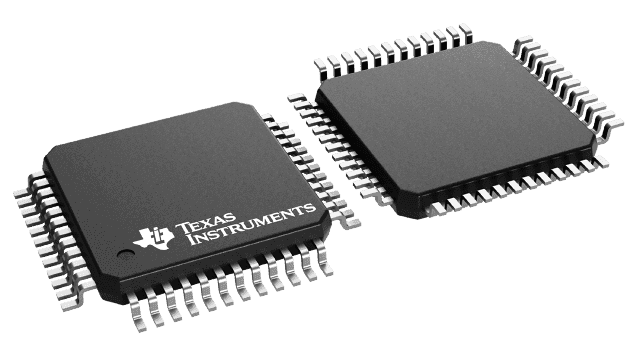

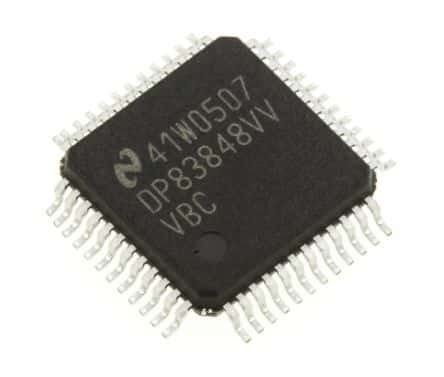

Product Images
