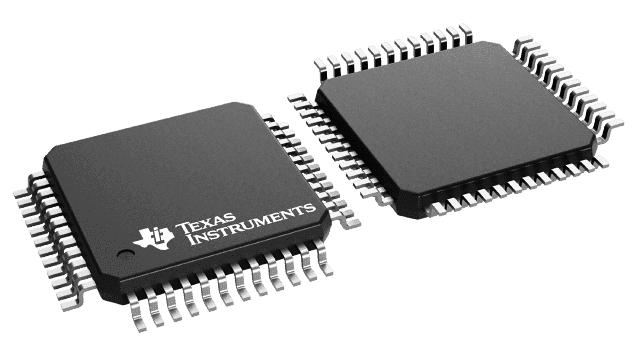

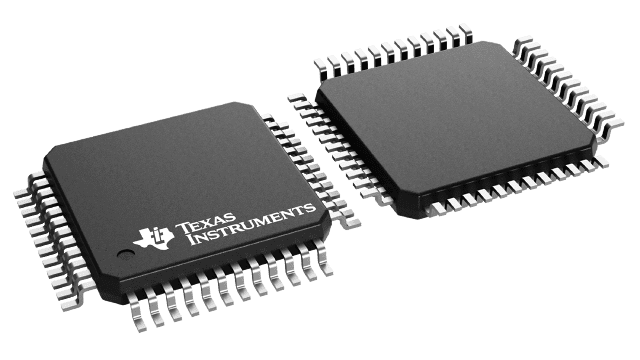

100Mbps Ethernet PHY, featuring a single channel and transceiver, operates at 3.3V with a supply voltage range of 3V to 3.6V. This surface mount component is housed in a 48-pin LQFP package, measuring 7mm in length, 7mm in width, and 1.4mm in height. It offers a maximum power dissipation of 267mW and a maximum supply current of 92mA, with an operating temperature range of 0°C to 70°C. Packaged in tape and reel, this RoHS compliant integrated circuit is designed for serial interface applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments DP83848CVVX/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LQFP |
| Data Rate | 100Mbps |
| Height | 1.4mm |
| Interface | Serial |
| Lead Free | Lead Free |
| Length | 7mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 267mW |
| Max Supply Current | 92mA |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Transceivers | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | DP83848C |
| Supply Current | 92mA |
| Thickness | 1.4mm |
| Weight | 0.006409oz |
| Width | 7mm |
| RoHS | Compliant |
