Automotive Ethernet PHY, 1-channel, 10/100Mbps data rate, 3.3V operating supply voltage. Features a 48-pin LQFP package for surface mounting. Operates across a wide temperature range from -40°C to 85°C with a maximum supply voltage of 3.6V. This RoHS compliant component is supplied on tape and reel.
PackageLQFP
Current92mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DP83848IVVX/NOPB technical specifications.
General
| Package/Case | LQFP |
| Data Rate | 100Mbps |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Operating Supply Voltage | 3.3V |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 92mA |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DP83848IVVX/NOPB Datasheet
Download the complete datasheet for Texas Instruments DP83848IVVX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

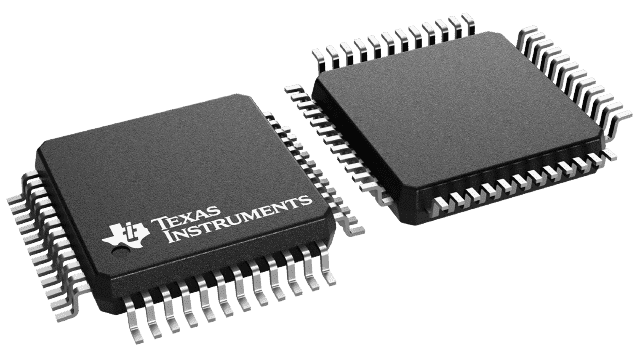

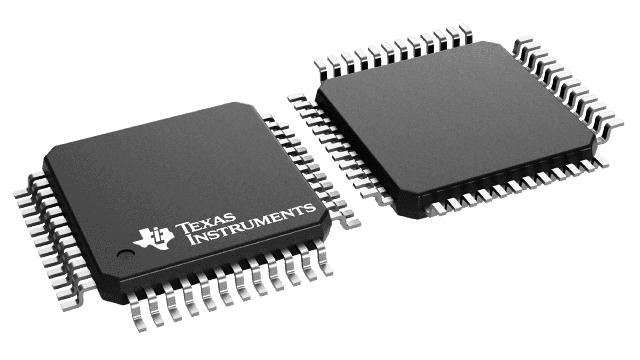

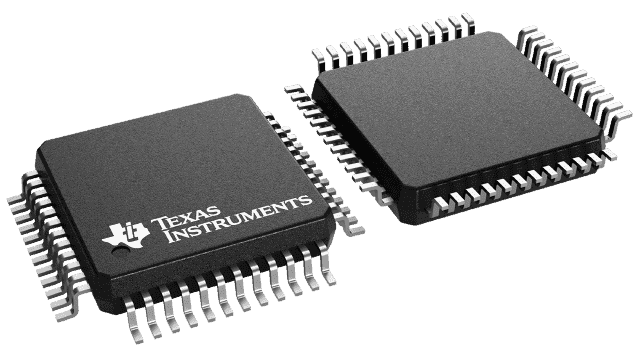

Product Images
