Ethernet PHY, 1-channel, supporting 10Mbps and 100Mbps data rates. Features a 3.3V operating voltage with a range of 3V to 3.6V. Encased in a 48-pin LQFP package for surface mounting. Operates across an industrial temperature range from -40°C to 125°C. This component is lead-free and RoHS compliant.
PackageHLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DP83848YB/NOPB technical specifications.
General
| Package/Case | HLQFP |
| Data Rate | 100Mbps |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Thickness | 1.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DP83848YB/NOPB Datasheet
Download the complete datasheet for Texas Instruments DP83848YB/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

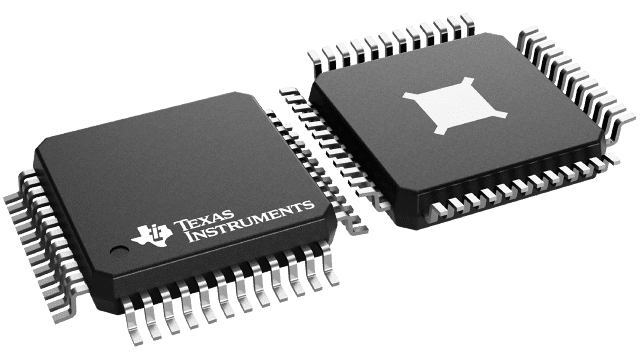

Product Images
