PackageTO-263
Current5mA
Quick Jump:
Technical Specifications
Texas Instruments DRV101FKTWT technical specifications.
General
| Package/Case | TO-263 |
| Fault Protection | Over Temperature |
| Height | 4.44mm |
| Lead Free | Lead Free |
| Length | 10.1mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.9A |
| Max Supply Voltage | 60V |
| Min Supply Voltage | 9V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 24V |
| Output Configuration | Low Side |
| Output Current | 1.9A |
| Output Voltage | 800mV |
| Package Quantity | 50 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | DRV101 |
| Supply Current | 5mA |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments DRV101FKTWT Datasheet
Download the complete datasheet for Texas Instruments DRV101FKTWT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

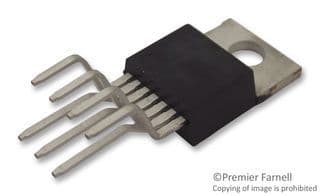

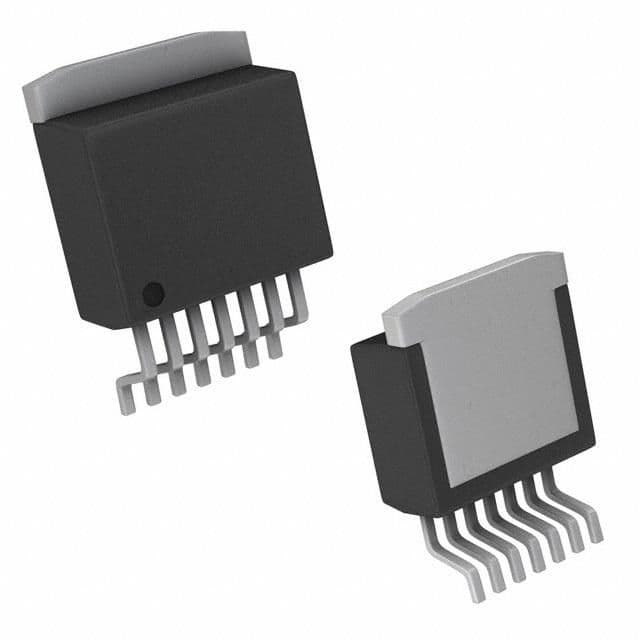

Product Images
